1 7

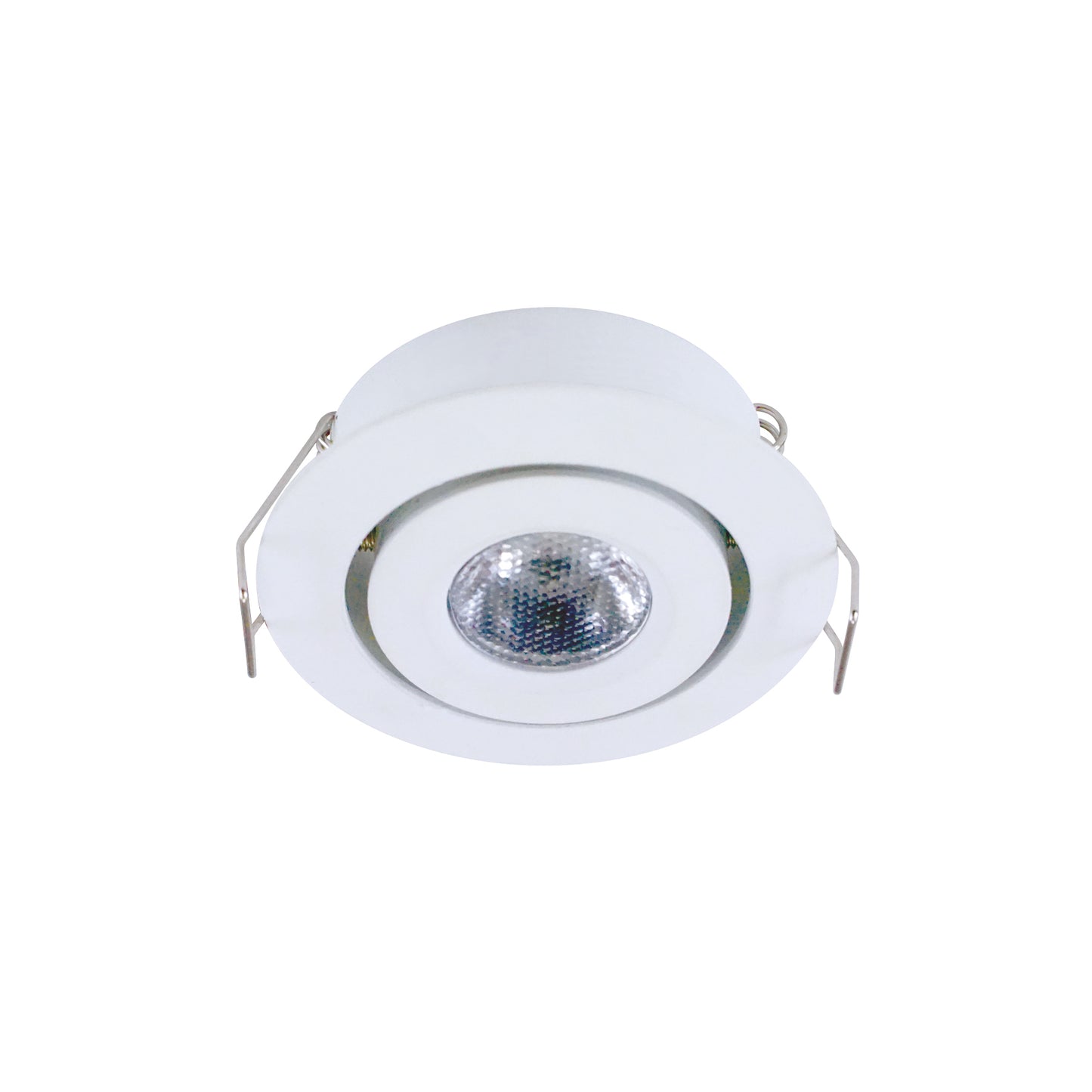

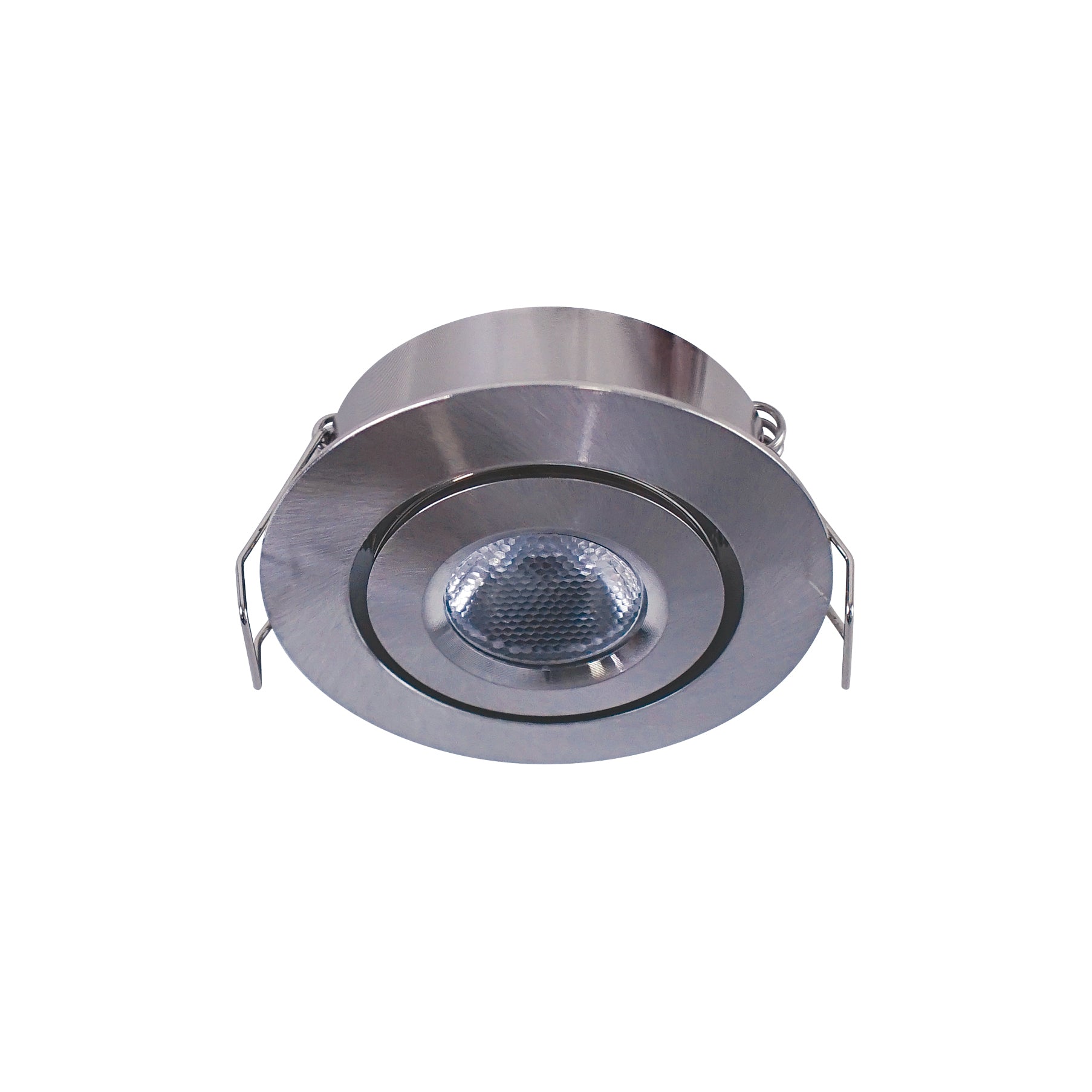

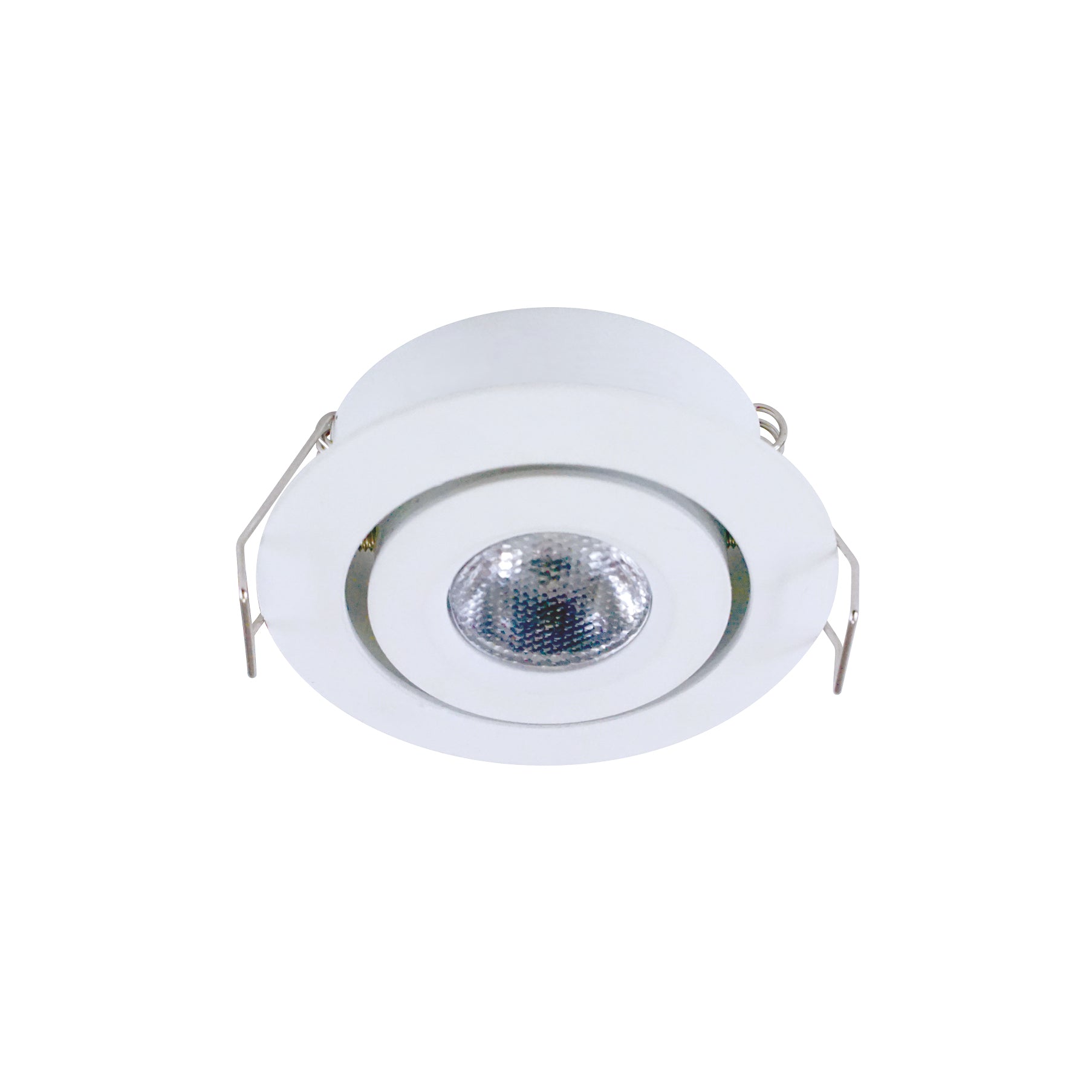

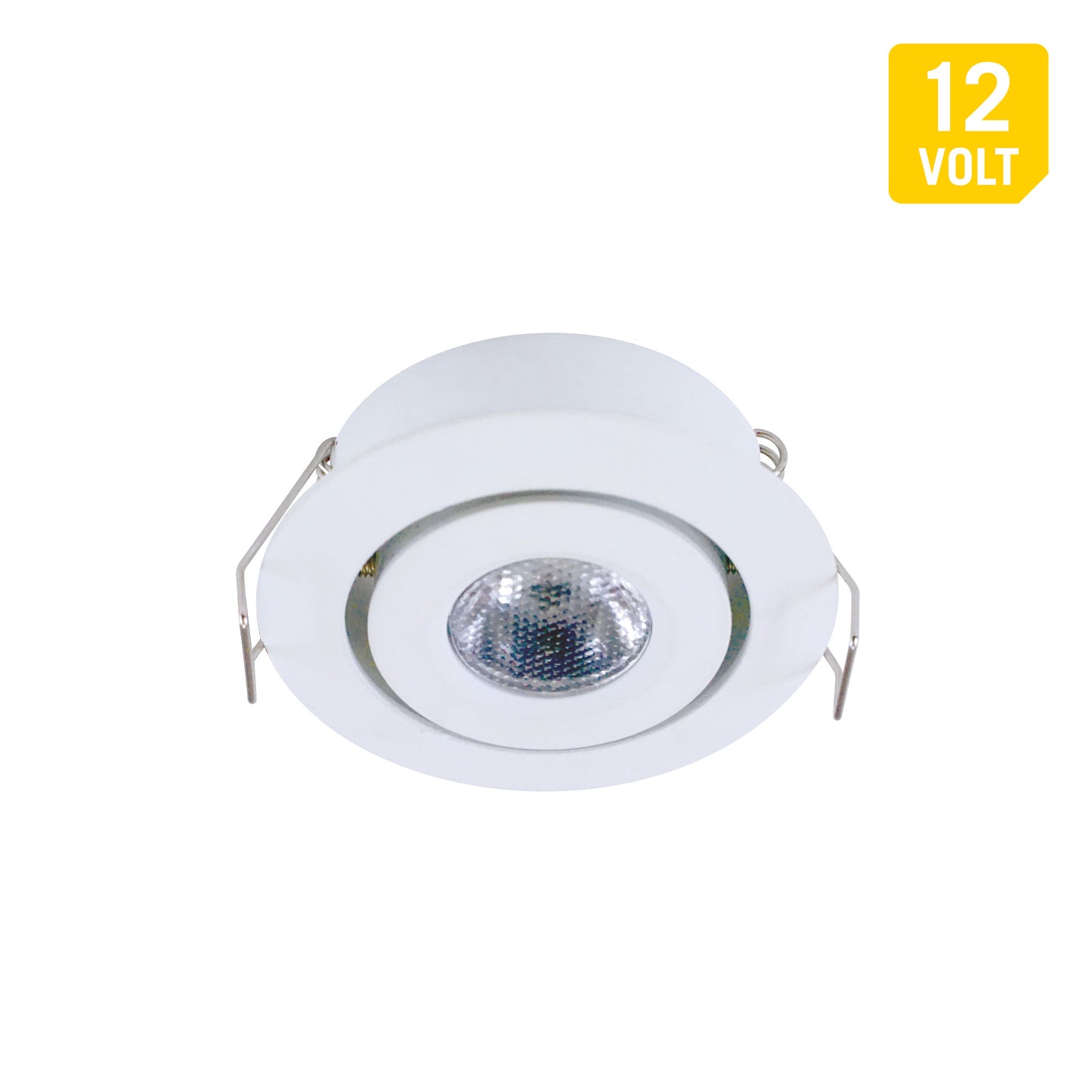

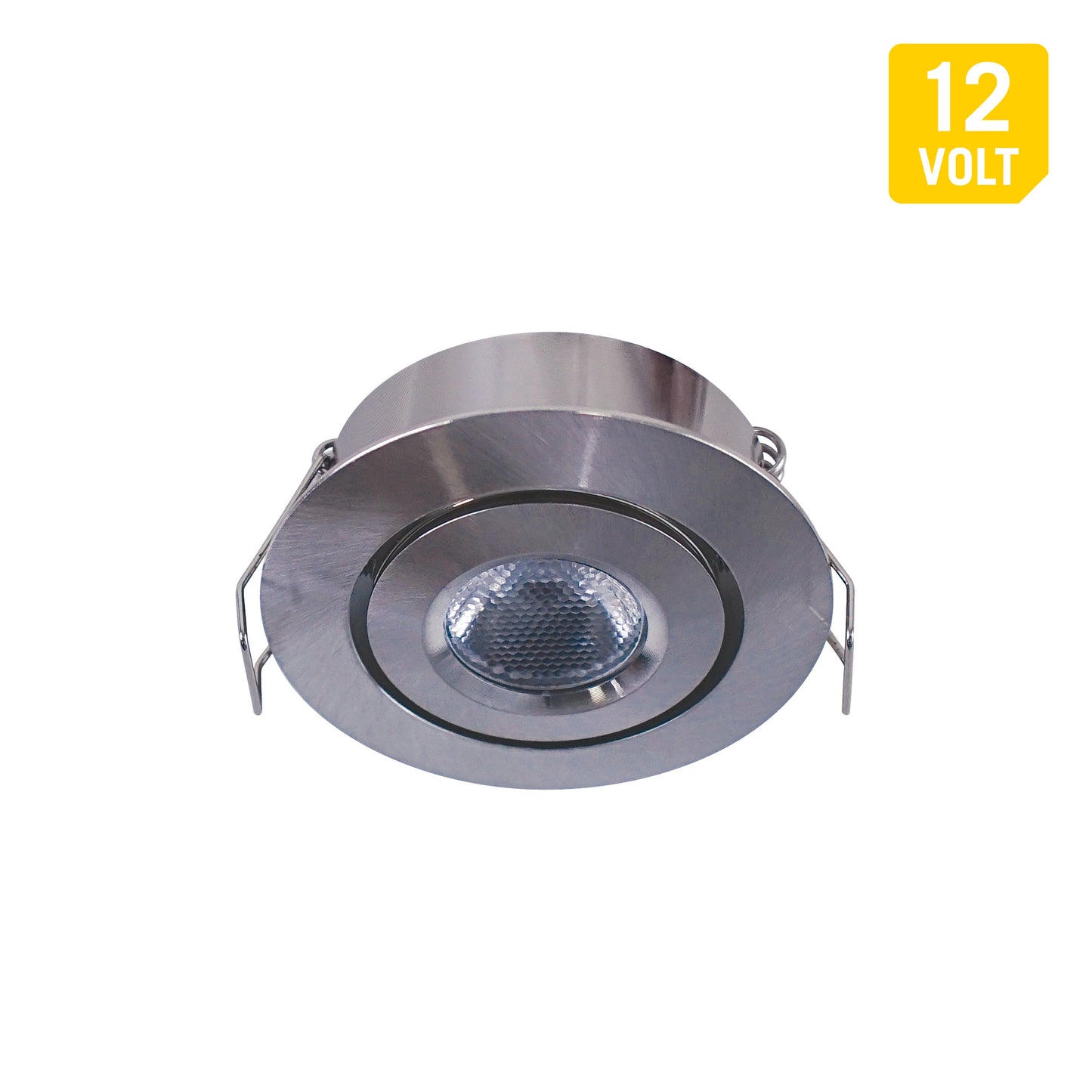

Swivel Recessed Under Cabinet LED Puck Light

$29.99
$29.99 -
Recessed LED puck light featuring a slim profile and 2 in diameter. The adjustable 30° beam angle is perfect for cabinet light or display case lighting installations.
Color Temperature

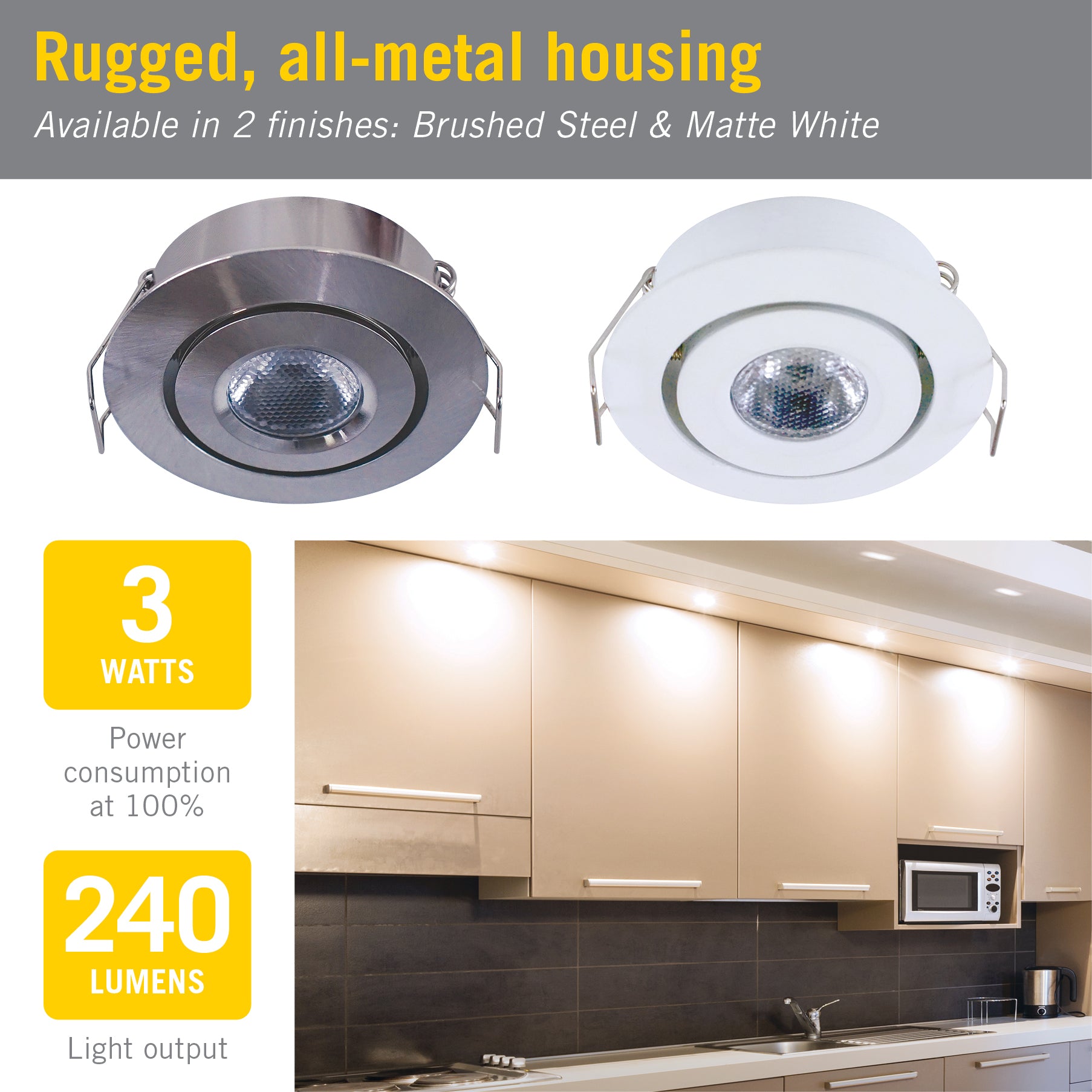

Finish
Free & Same-Day Shipping Available - Details
sku: 212317

Features

  • Integrated diffuser softens the light and eliminates glare on adjacent surfaces

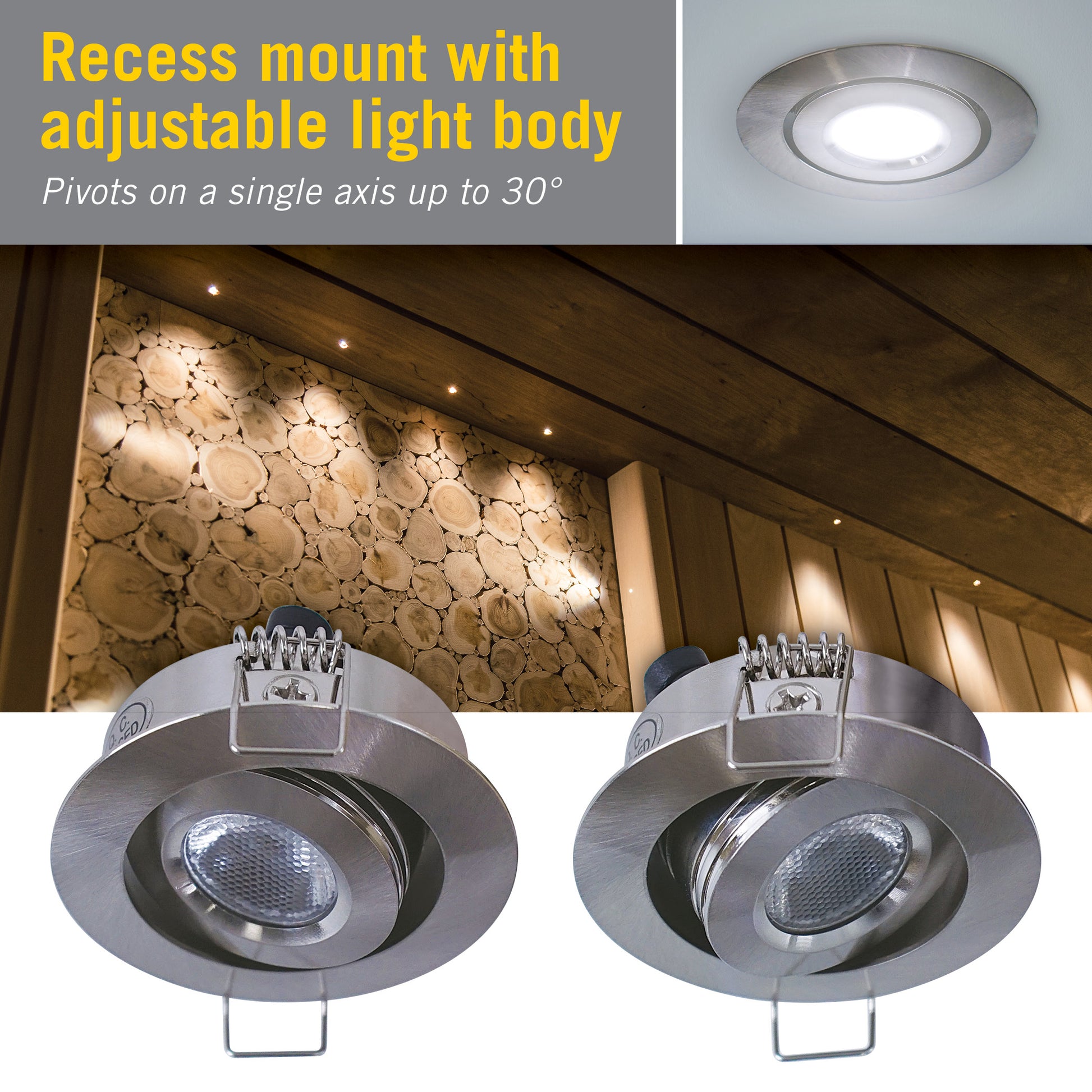

  • The light pivots on a single axis up to 30° for minor directional control

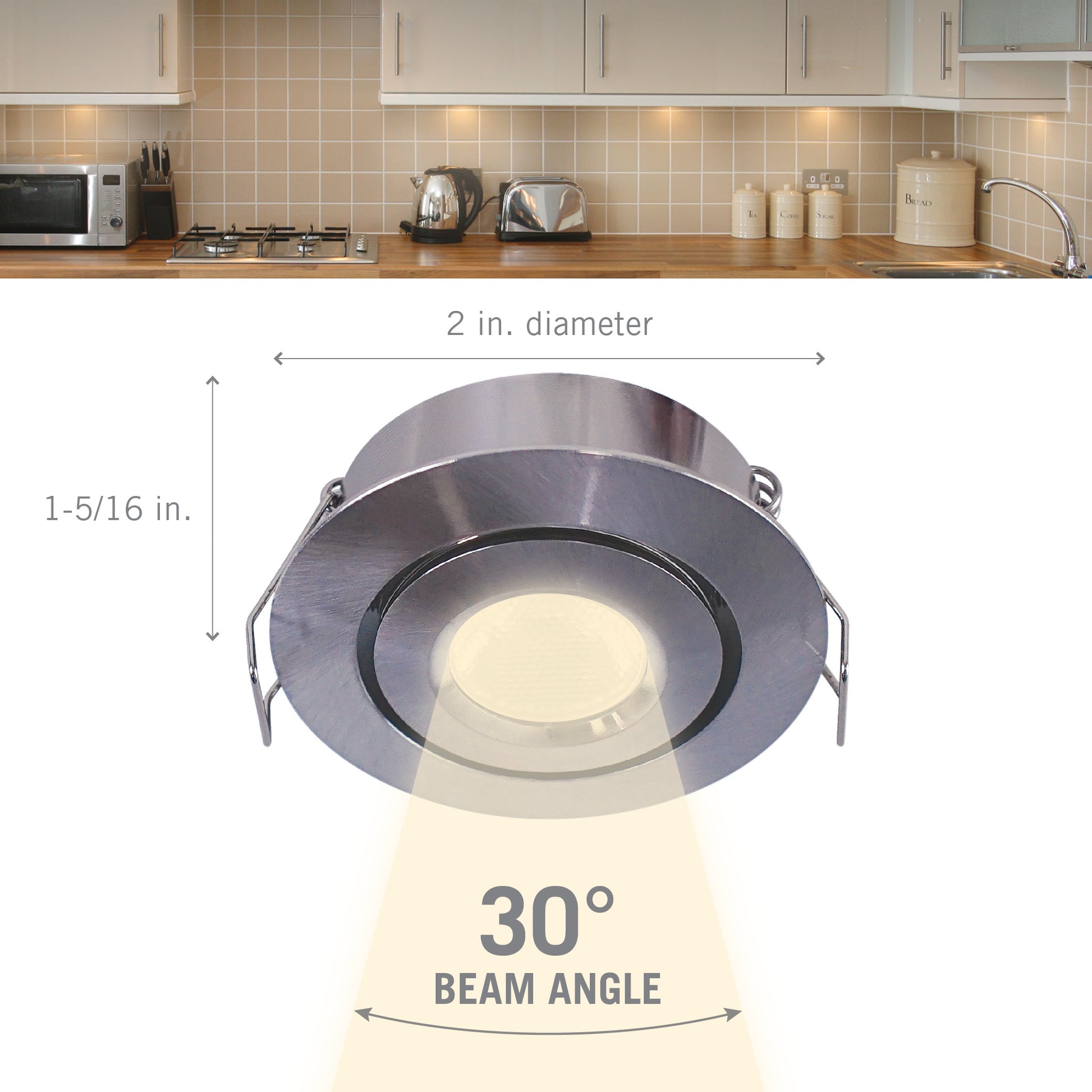

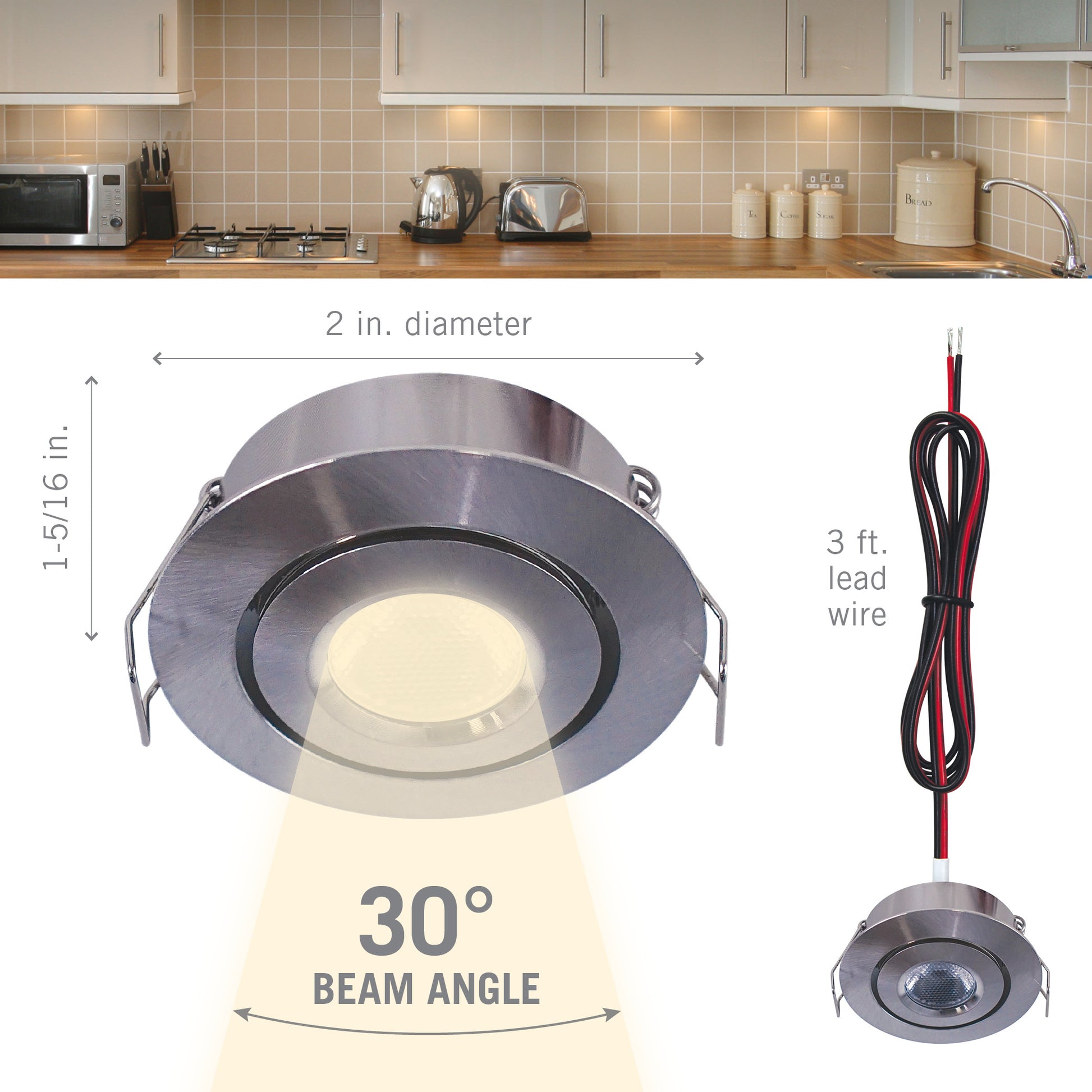

  • 2 in. trim diameter requires a 1-3/4 in. hole cut out

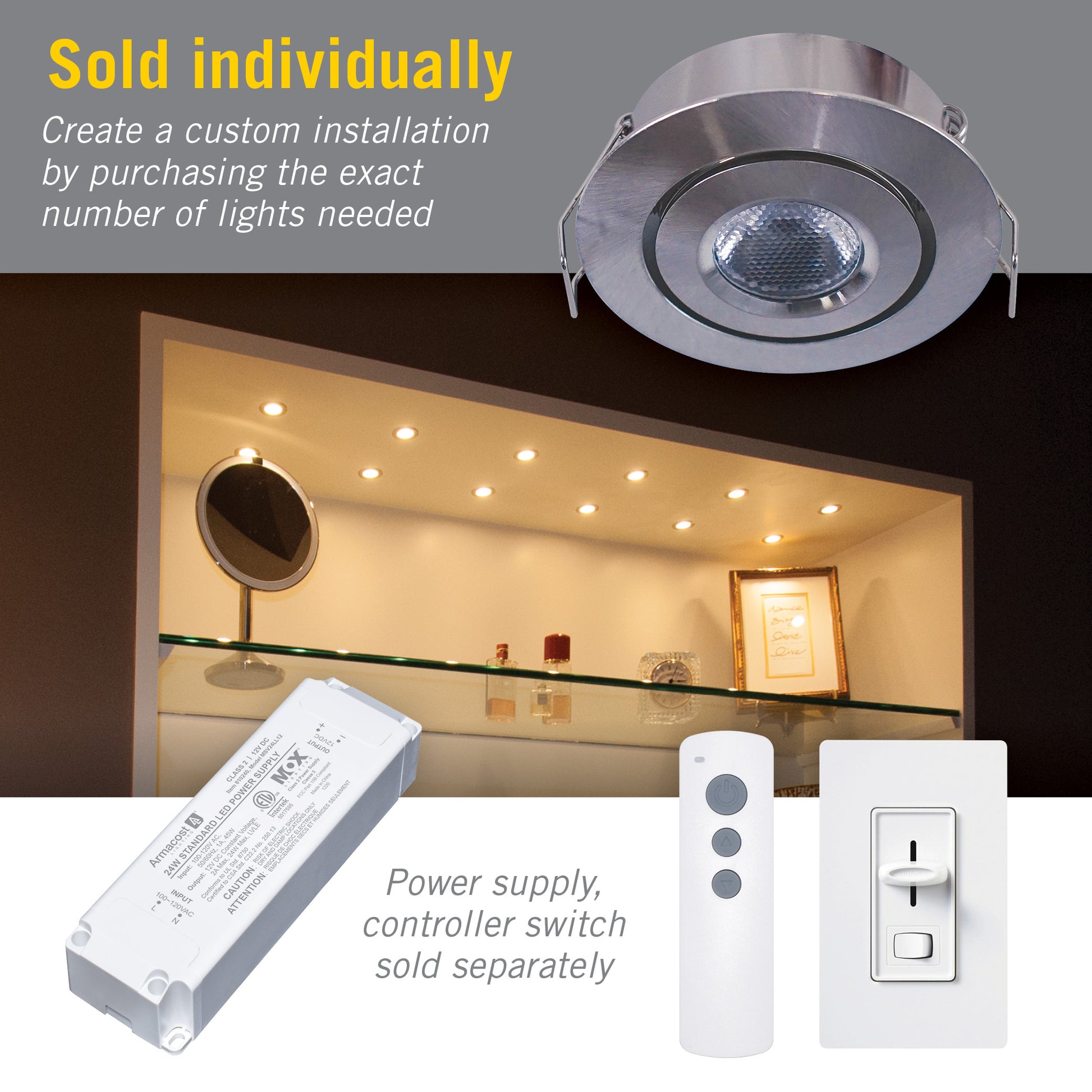

  • Lights can be installed individually, linked together, or combined with other Armacost LED lighting in the same circuit
  • Dimmable from 100 - 0% brightness
  • Requires a 12-volt DC power supply; do not connect to 120-volt AC current
INSTRUCTIONS

Product Description

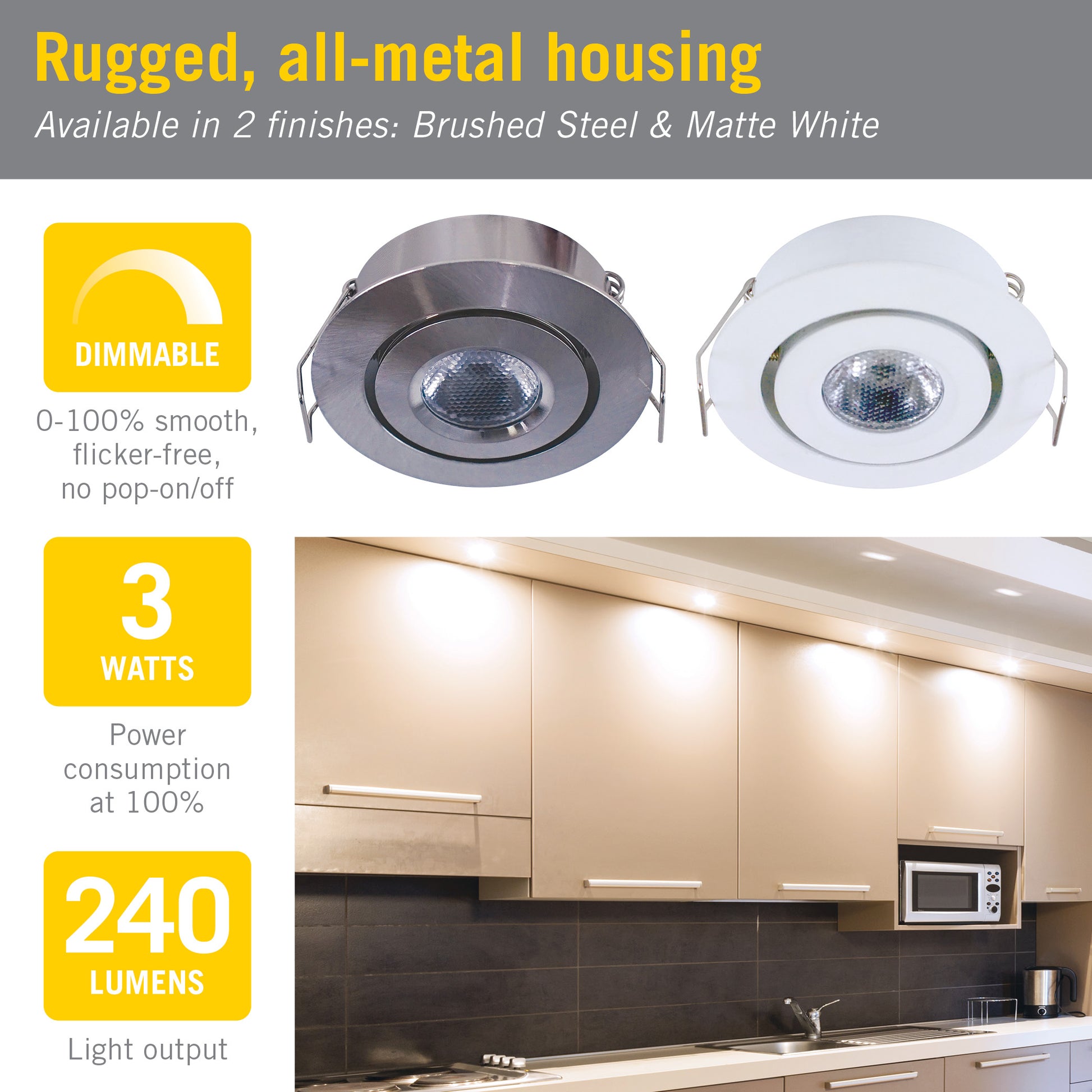

This bright, dimmable low-voltage LED down light has a 2 in. diameter and uses only 3 watts, making it a great solution for installations where a slim profile, recessed spotlight is ideal, such as cabinets, display shelving, vanities and staircases.  Provides 0-100% full range smooth dimming when used with Armacost Lighting LED dimmers. Requires a power supply, sold separately.

Product Specifications

Item #212317
Specification
Beam Angle (Degree)
30
Certifications & Listings
ETL Listed
Color Rendering Index (CRI)
80

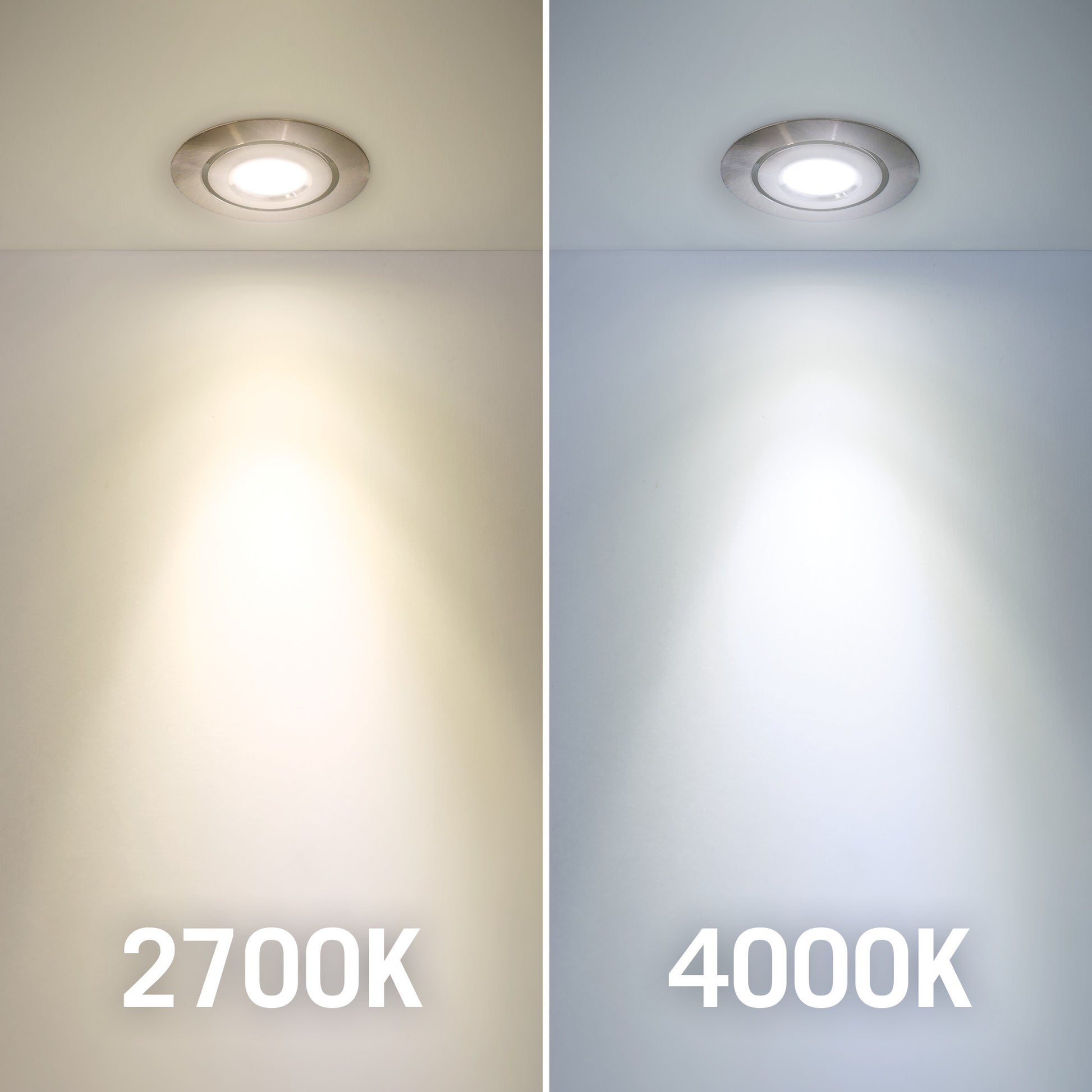

Color Temperature
2700K
Connection Type
Hardwire
Damp/Wet Rating
Dry Rated
Fixture Material
Aluminum
Hours Lifespan
35000
LED Light Color
Soft White
Mounting Method
Recessed
Puck Light Diameter
2 in
Total Lumens
240
Voltage
12V
Warranty
3 Year Limited
Watts
3
