Portico White LED Outdoor Recessed Light

$11.99
$11.99 -
Individual Portico LED lights are easily paired with the proprietary Portico Outdoor Light System components for outdoor LED light installations. Portico Starter Kits are also available in packs of 3, 5, or 10 LED lights bundled with a waterproof Portico LED Power Supply.
Diameter
sku: 221124

Features

  • 3000K Soft White LED puck light
  • IP67 wet location rated for outdoor use
  • Maximum walk over pressure is 220lbs
  • LED lights are fully dimmable from 0-100% brightness

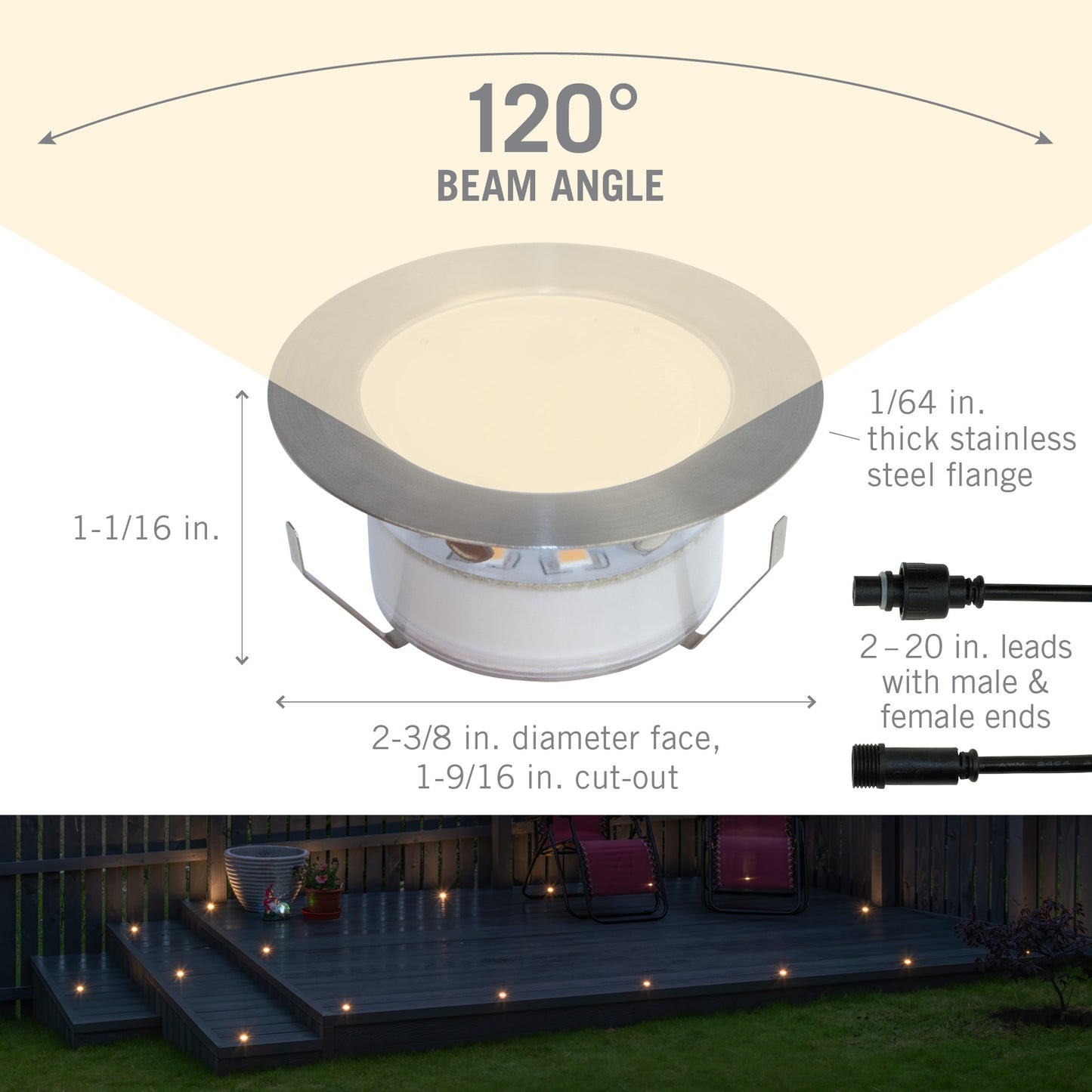

  • Each LED light includes 20 inch cable leads on either side (one male and one female)
  • View all Portico Outdoor Light System components

Installation Tip

Maximum Number of Lights Linkable per one Portico LED Driver:

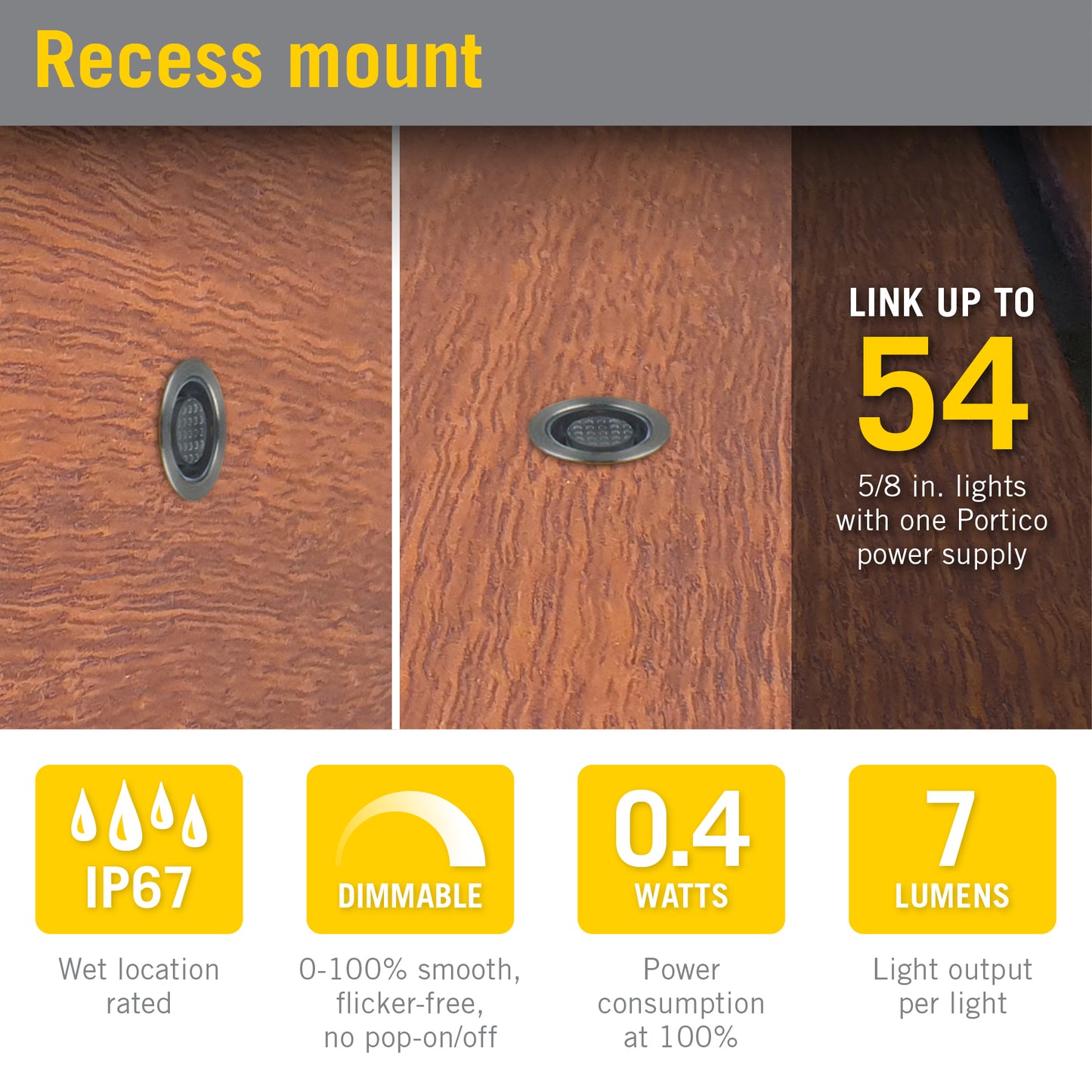

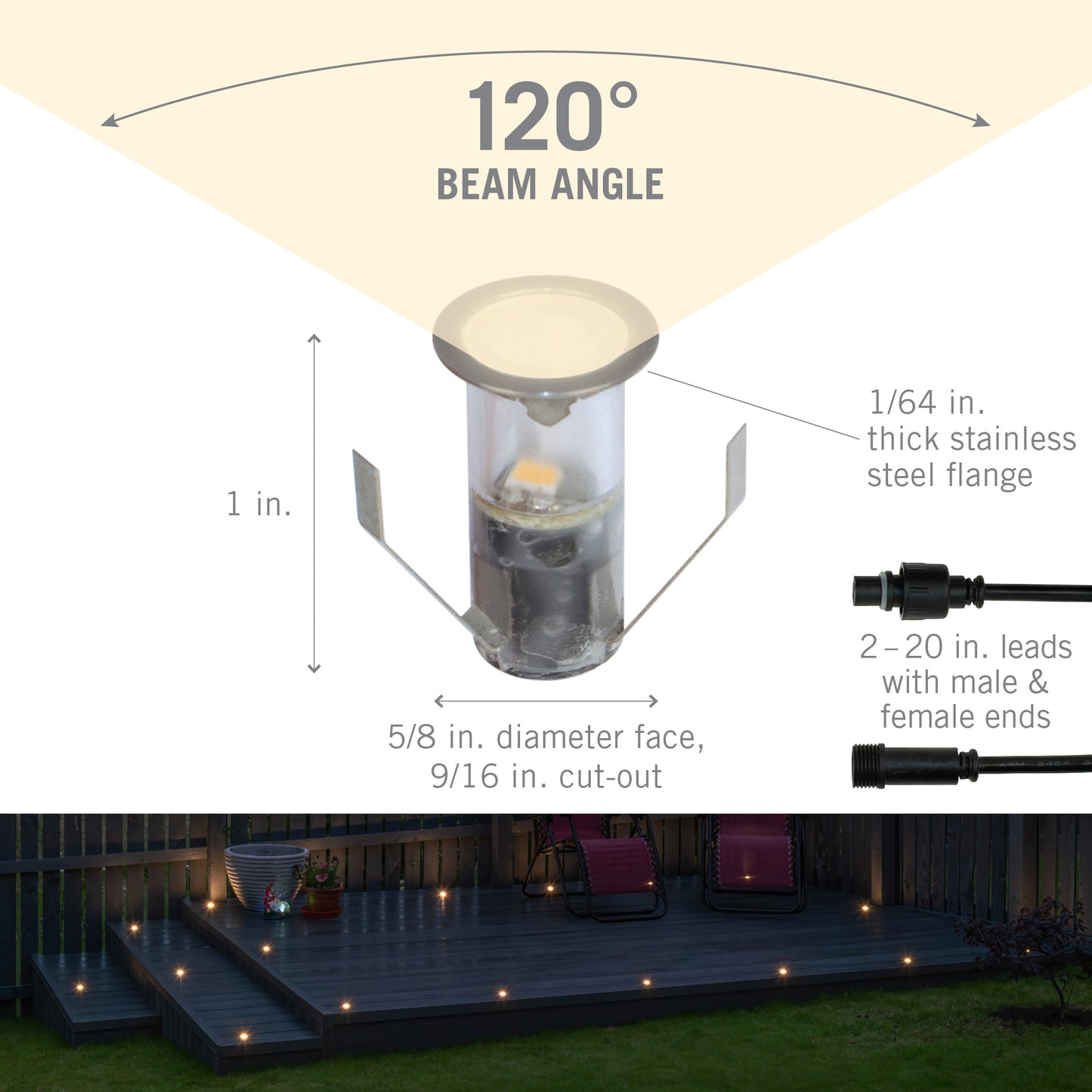

  • 54 Max for 5/8” (15mm) Diameter Lights

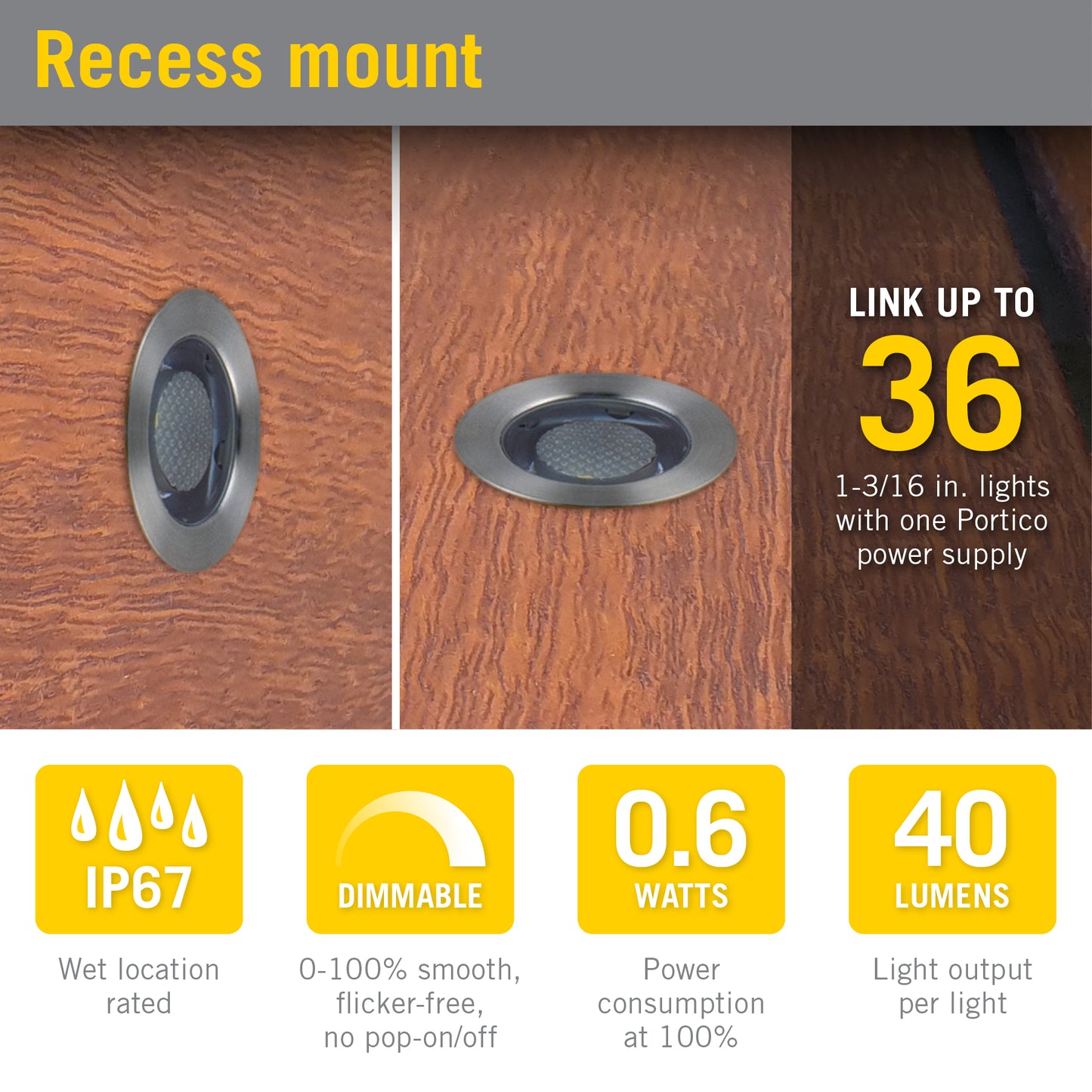

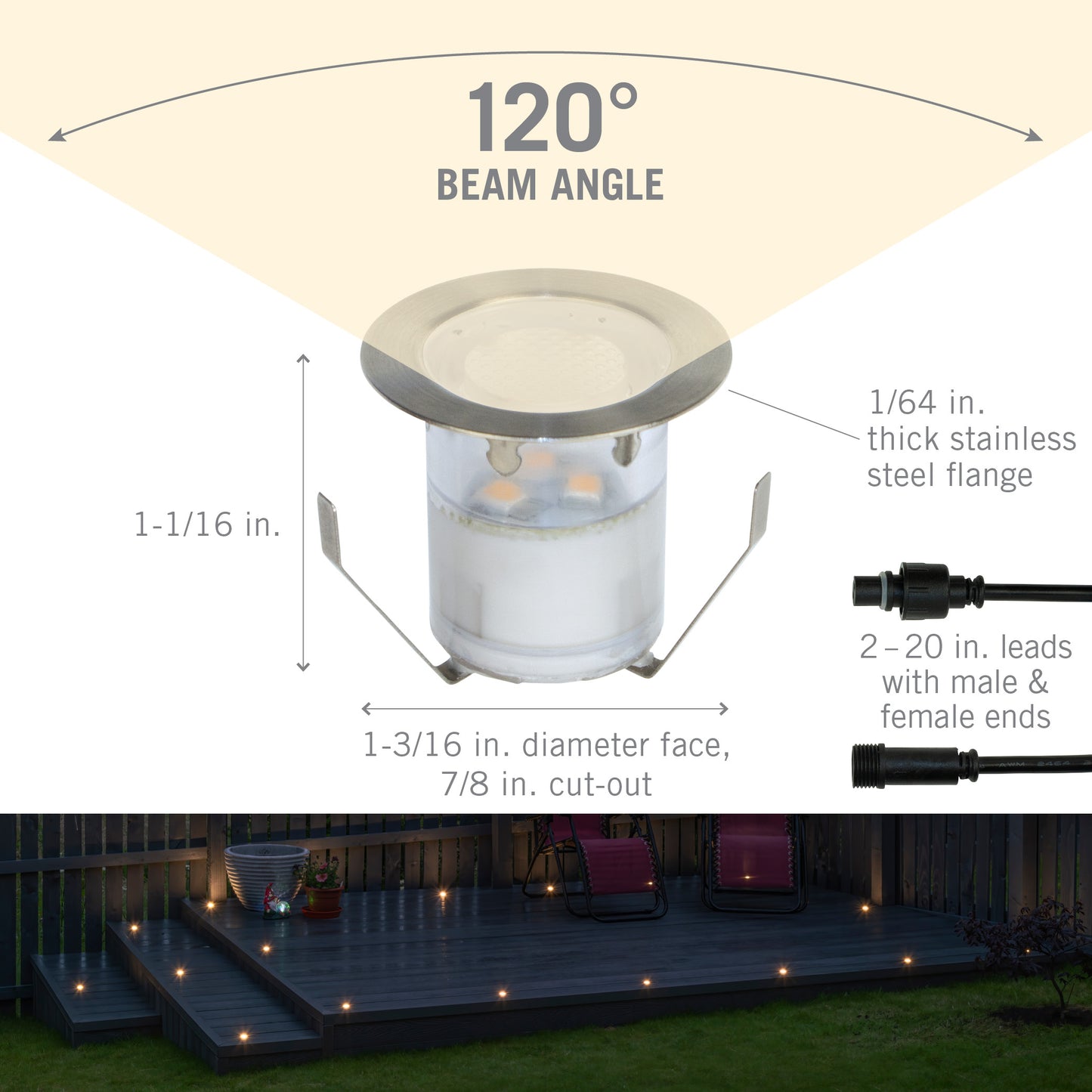

  • 36 Max for 1 3/16” (30mm) Diameter Lights

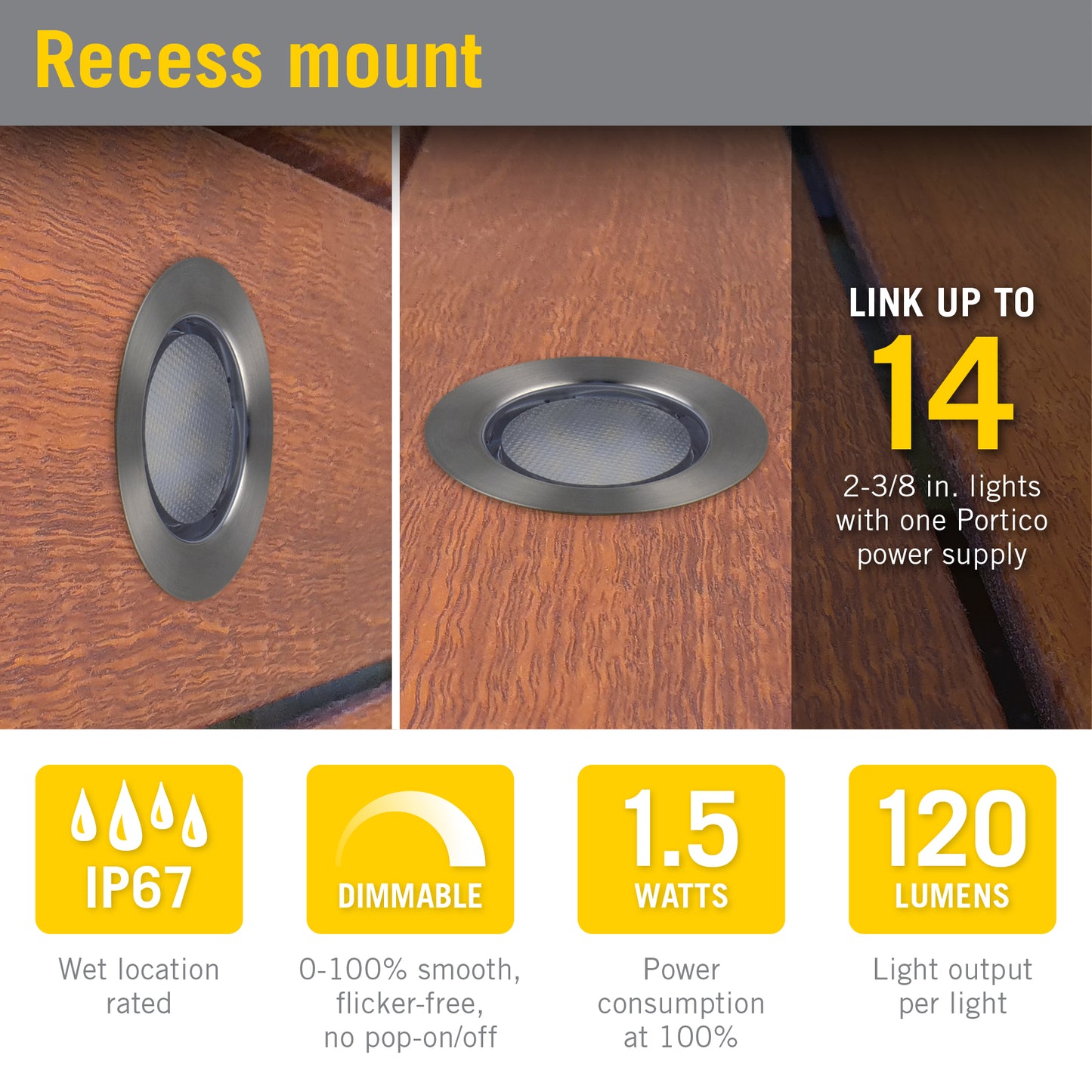

  • 14 Max for 2 3/8” (60mm) Diameter Lights
INSTRUCTIONS

Product Description

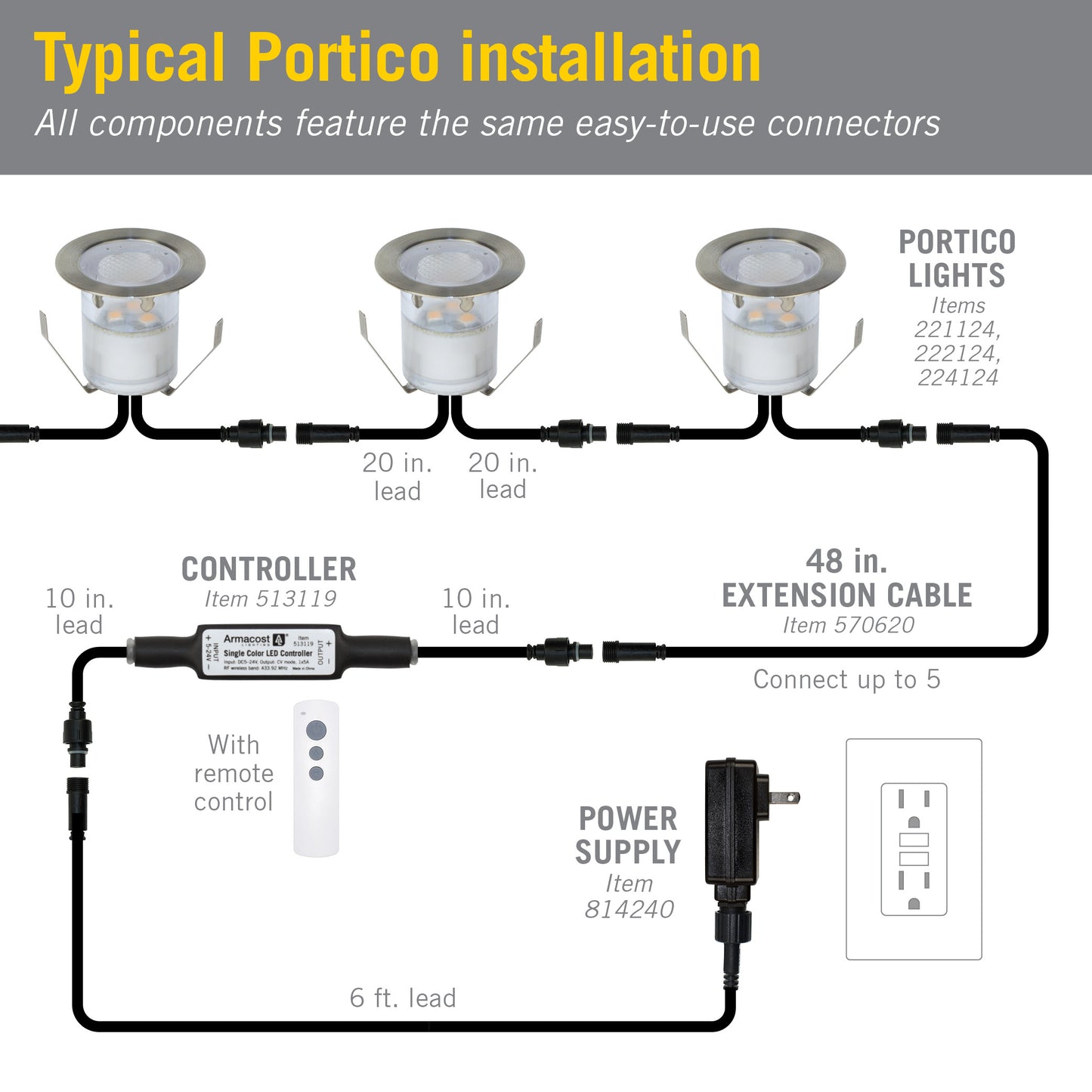

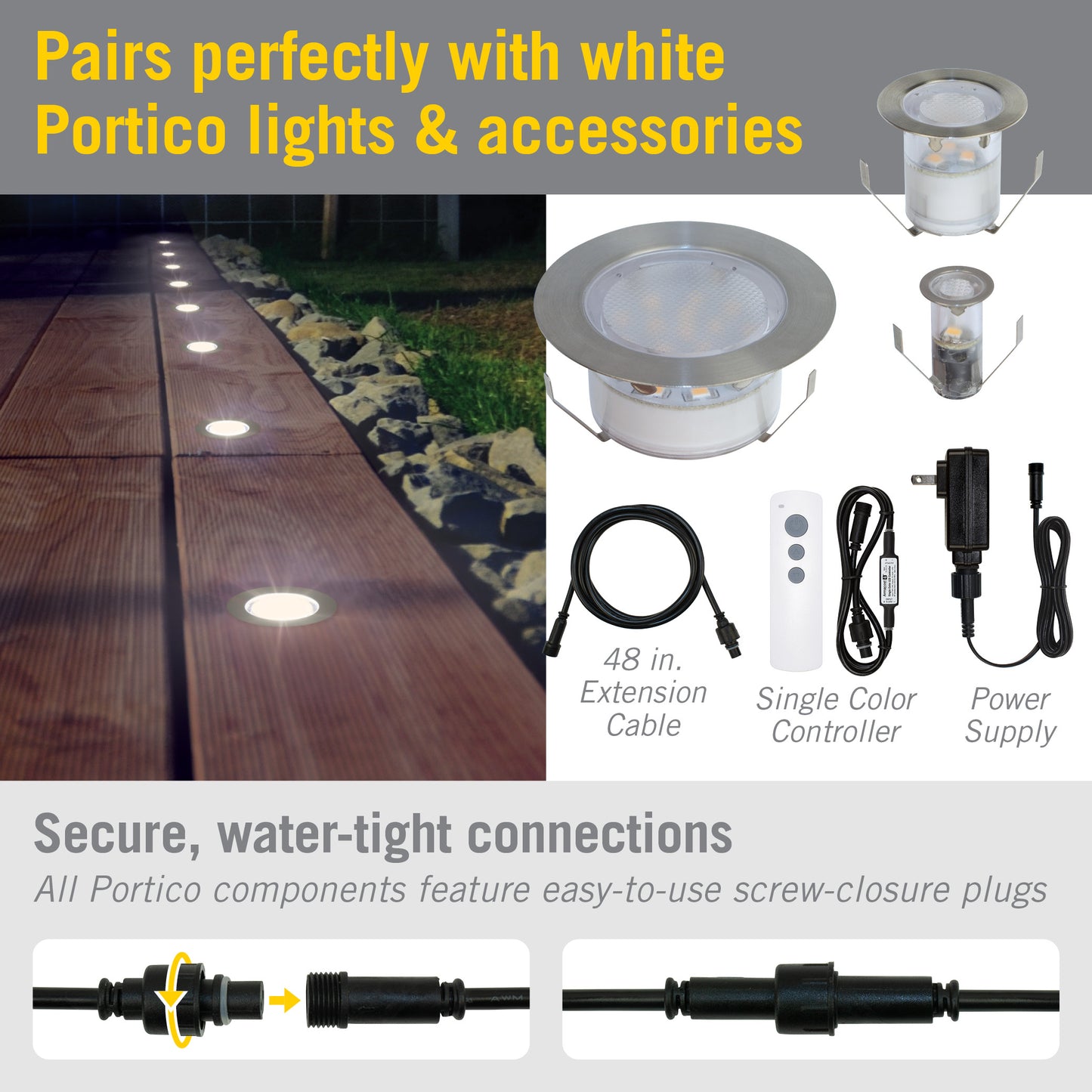

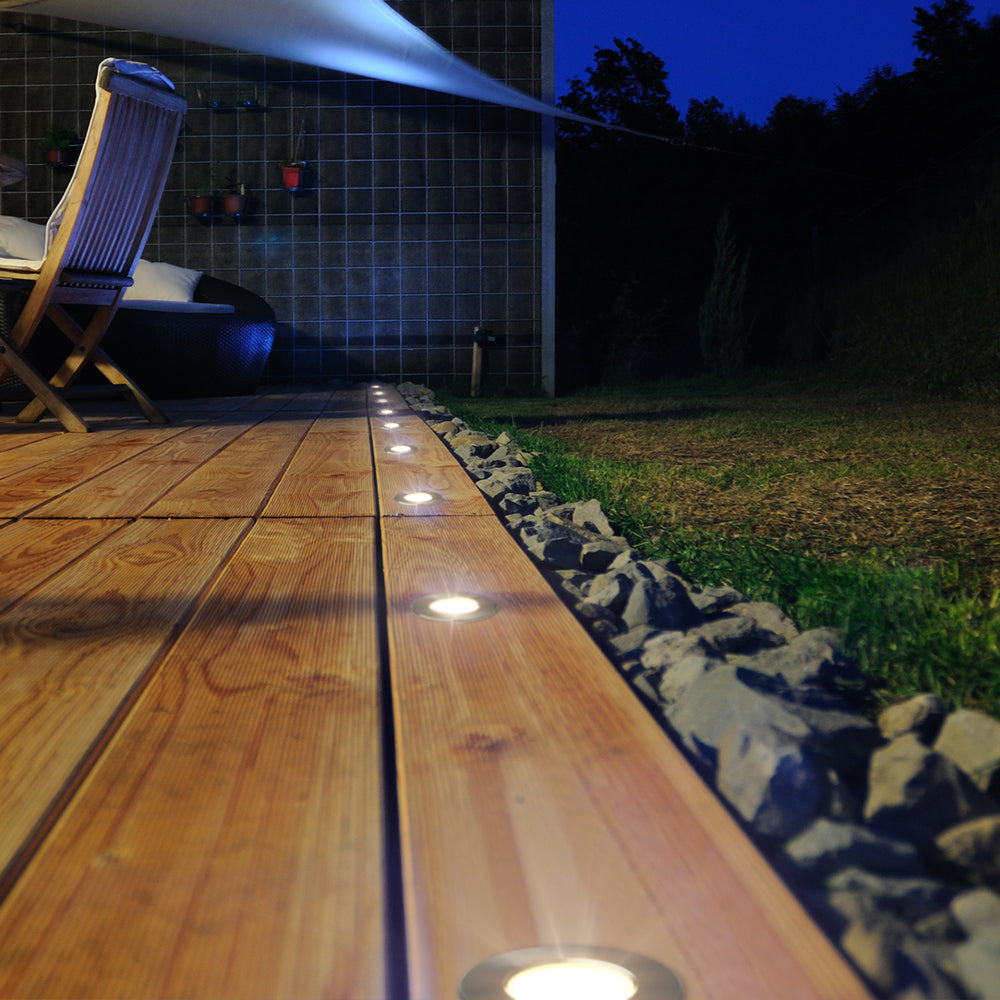

Armacost Lighting’s Portico White Recessed Outdoor Mini LED Lights are components in the exclusive Portico Outdoor Recessed Lighting System that also includes a proprietary LED light controller, LED Power Supply, and extension cables for large installations.   The stainless steel waterproof LED lights feature one-piece construction and are flush, recess mountable in any outdoor space including decks, docks, walkways, and steps. All Portico system components feature easy to use screw-closure plugs for secure, water-tight connections.  The Portico small LED lights are perfect for hardwire puck light and recessed LED light installations in outdoor spaces.

Product Specifications

Item #221124
Specification
Beam Angle (Degree)
120
Certifications & Listings
UL Listed
Color Temperature
3000K
Connection Type
Hardwire
Fixture Material
Stainless Steel
Hours Lifespan
50000
IP Rating
IP67
LED Light Color
Soft White
Puck Light Diameter
0.625 in
Total Lumens
7
Voltage
12V
Voltage Type
DC
Warranty
3 Year Limited
Watts
0.4
