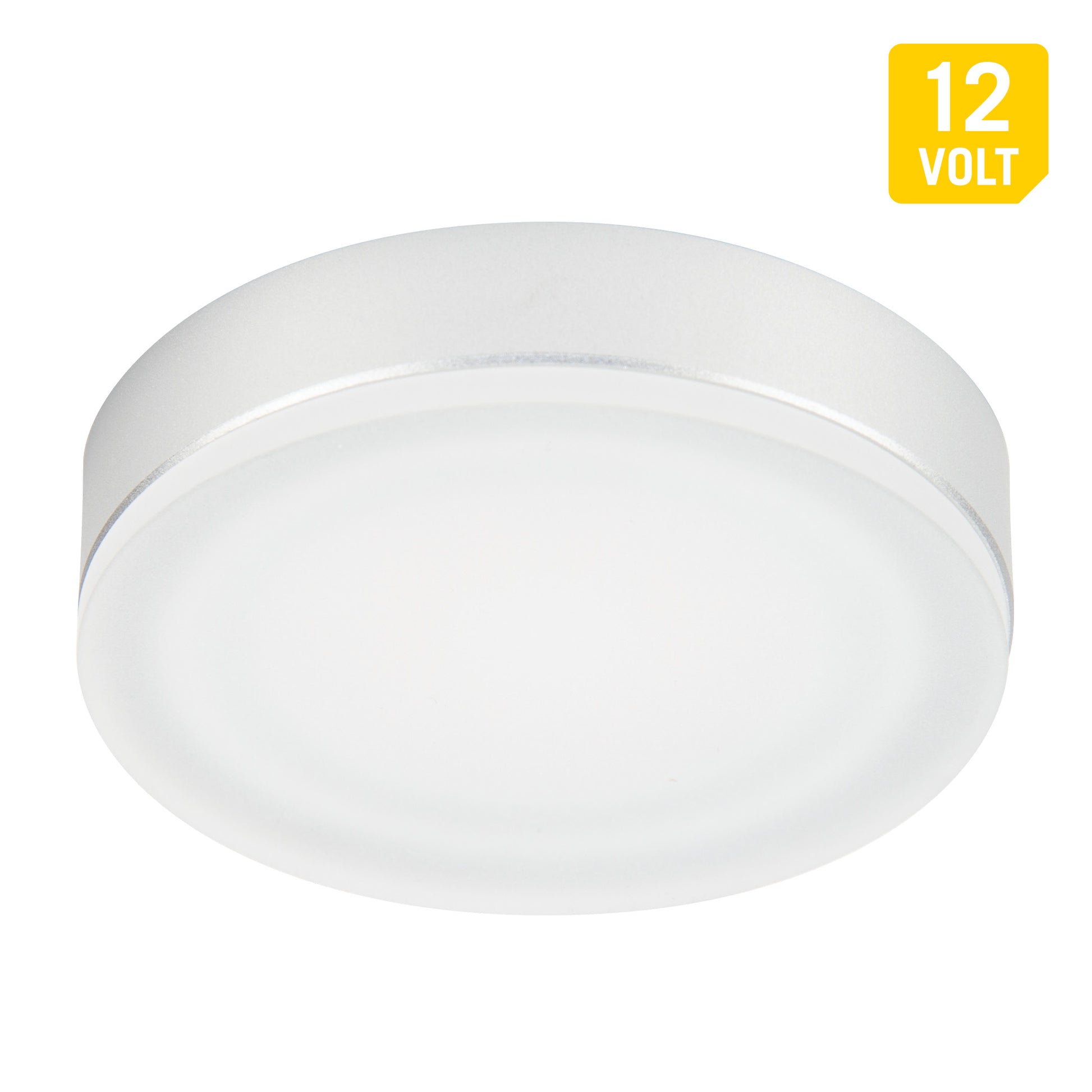

EdgeVue Under Cabinet LED Puck Light

$19.99
$19.99 -

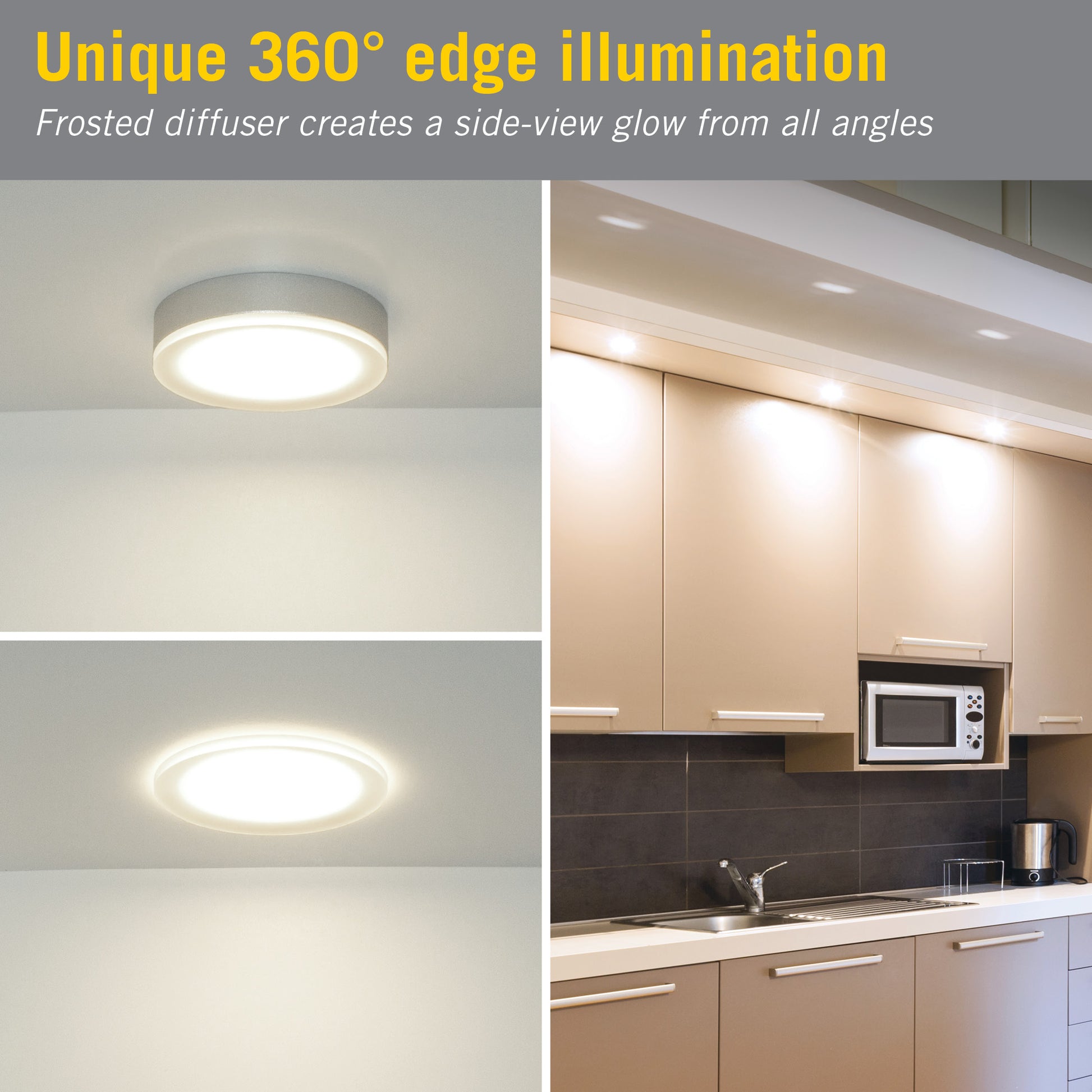

Unique LED puck light design features a 360 degree edge illumination surface that glows from all angles of the fixture. The 12 volt LED puck light has both surface and recess mounting options.
Color Temperature
sku: 213120

Features

  • Modern, minimalist LED puck light design illuminates white under counter lighting from all angles

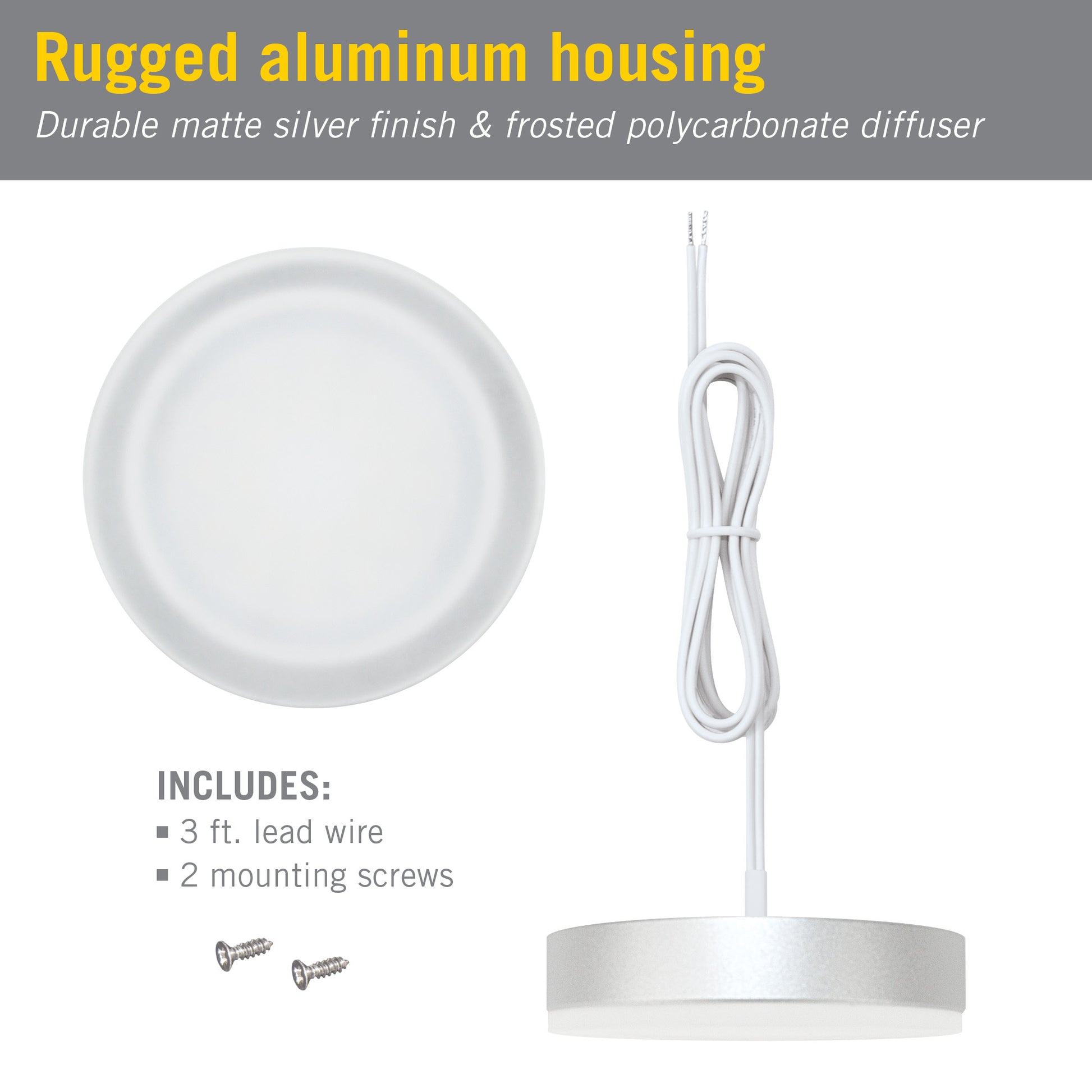

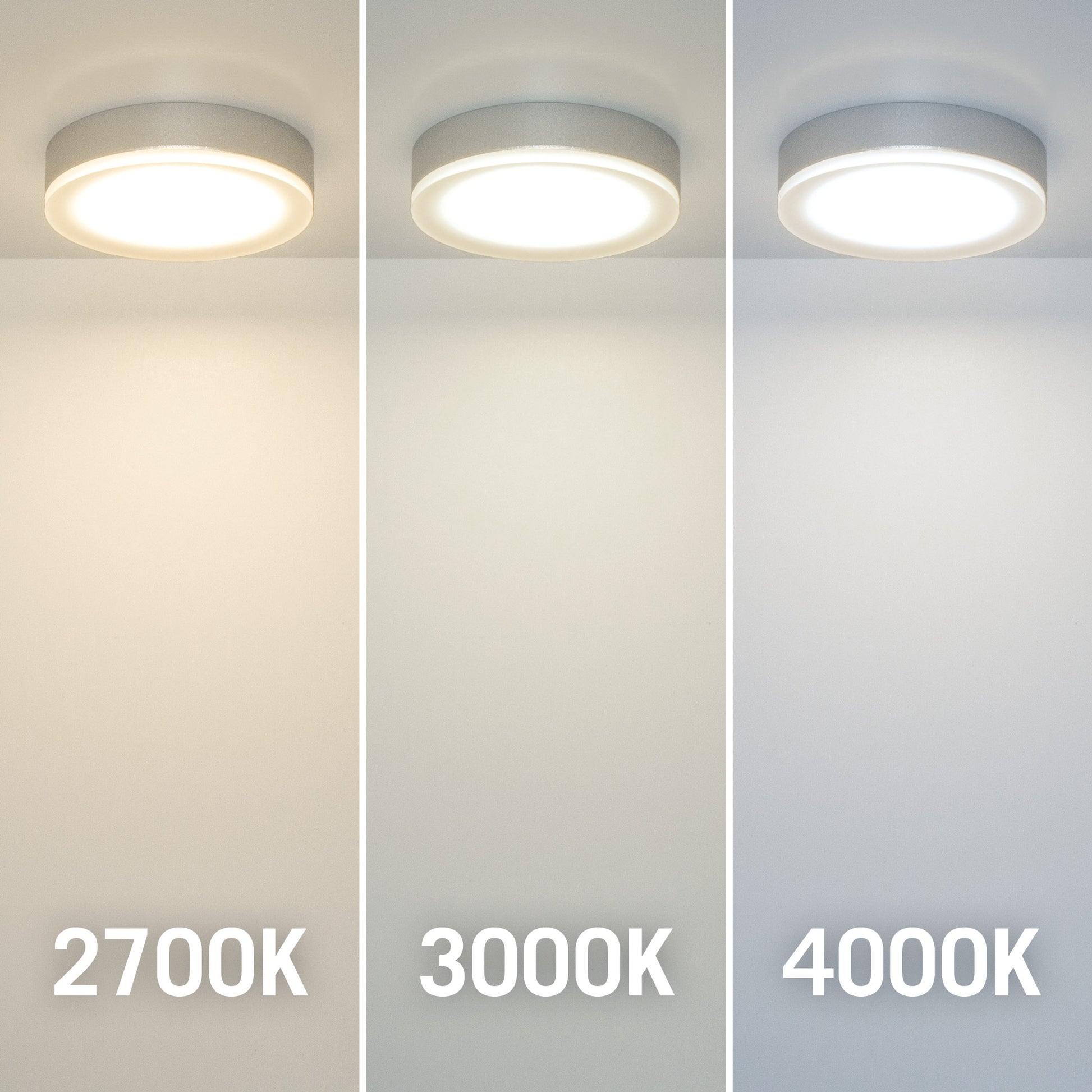

  • Dimmable LED puck lights with rugged aluminum housing come in a matte silver finish and multiple white LED color temperatures
  • Hardwired under cabinet lighting puck lights feature a frosted LED light diffuser

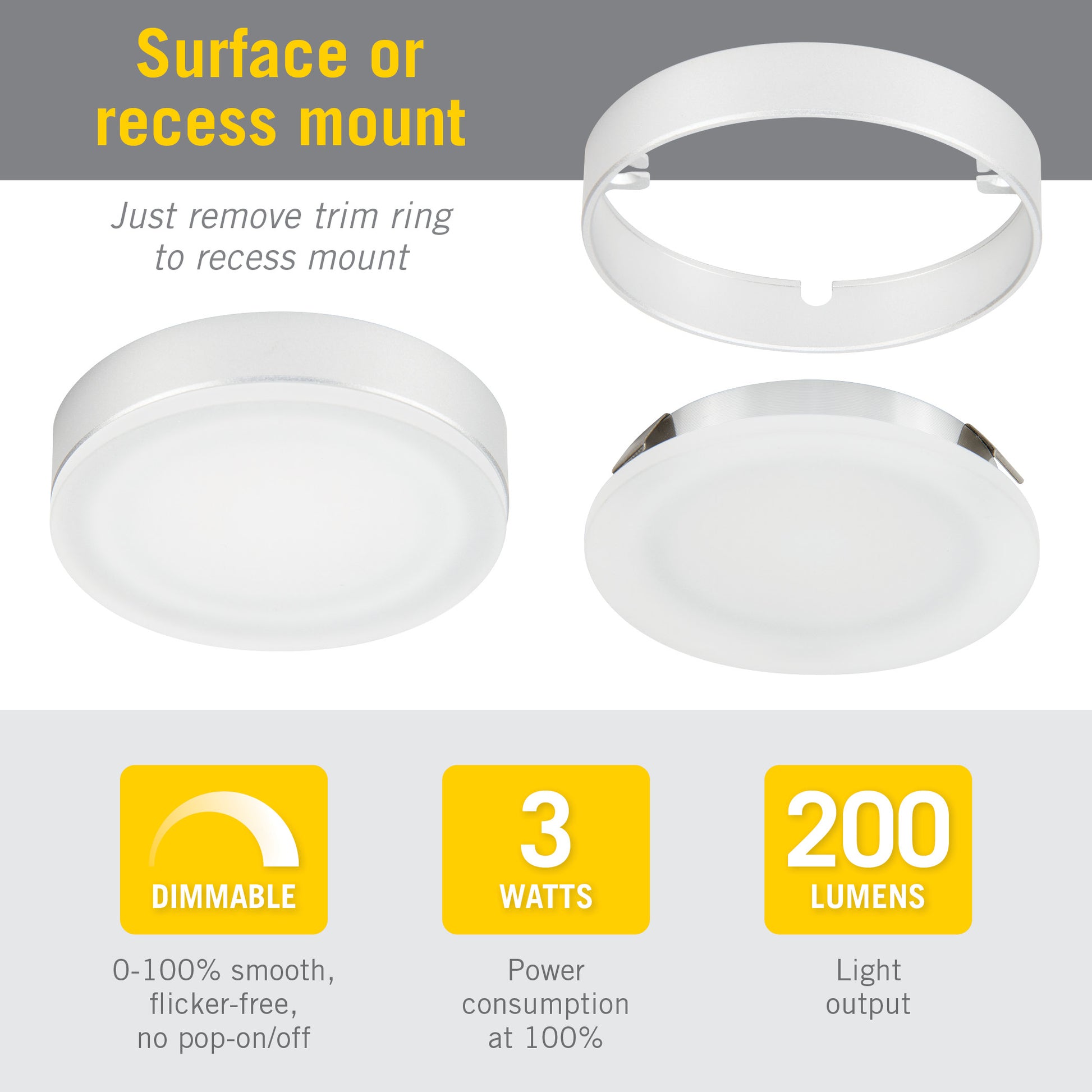

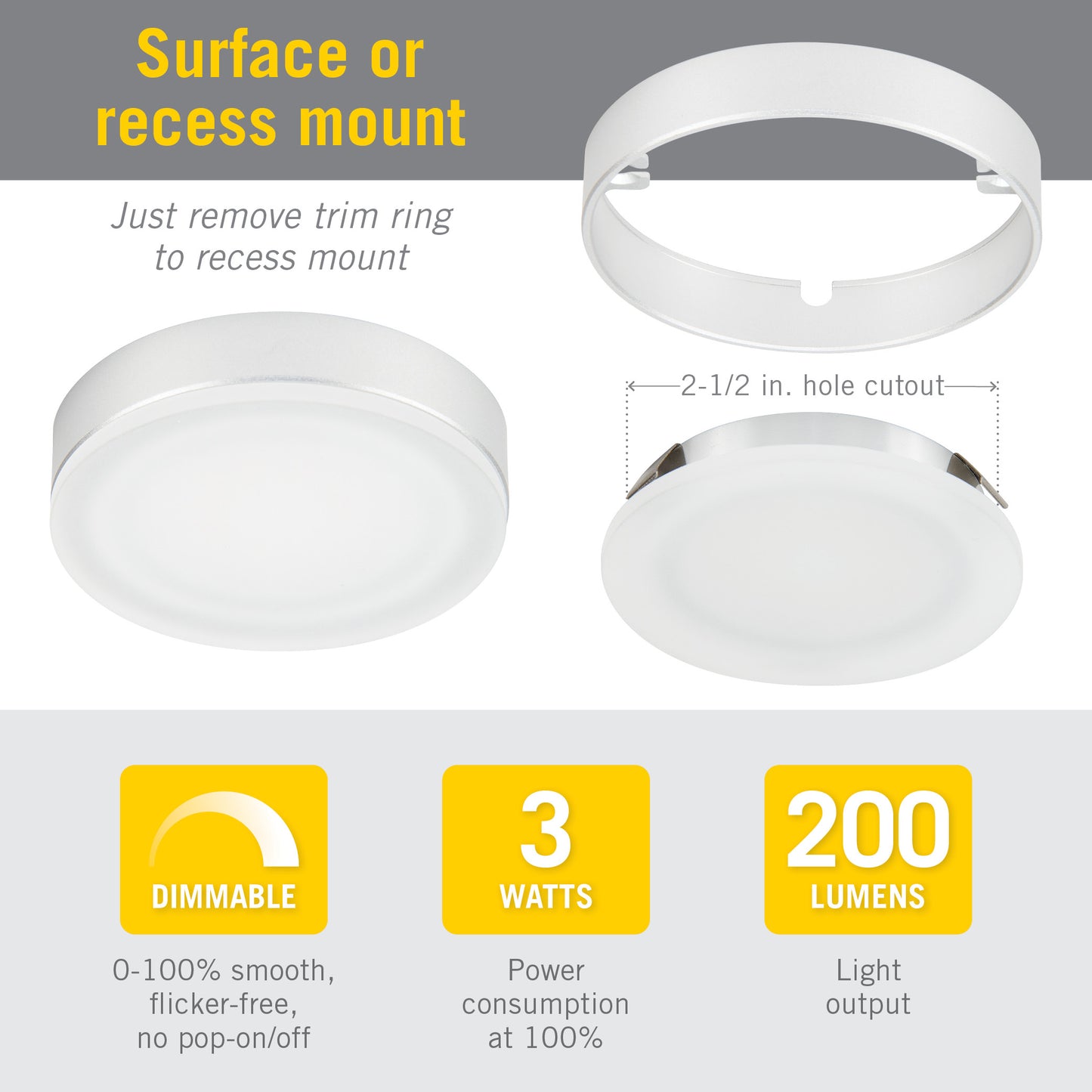

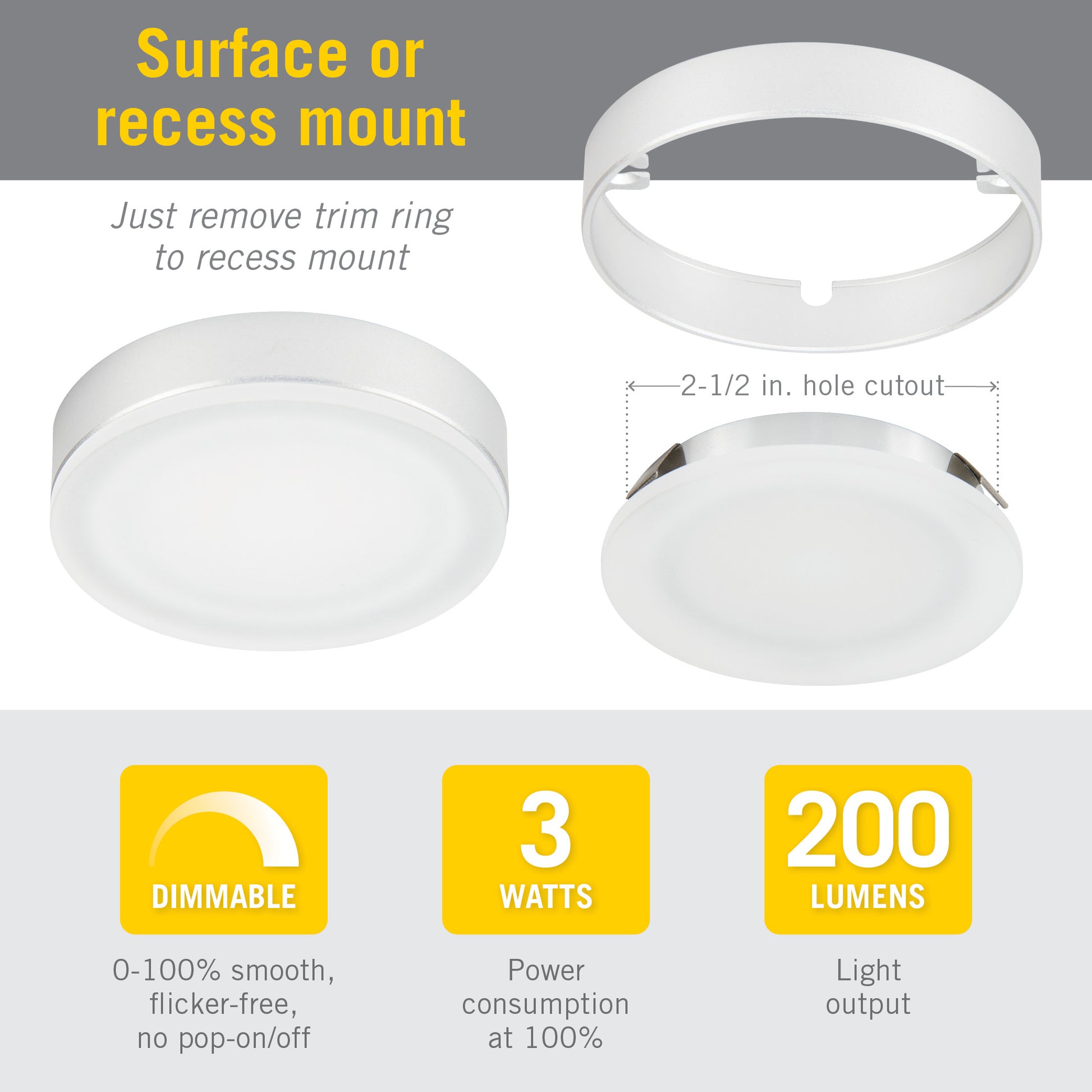

  • Surface or recess mount the LED downlights with removable trim ring
  • Pair with a LED controller to power and dim LED puck lights with remote

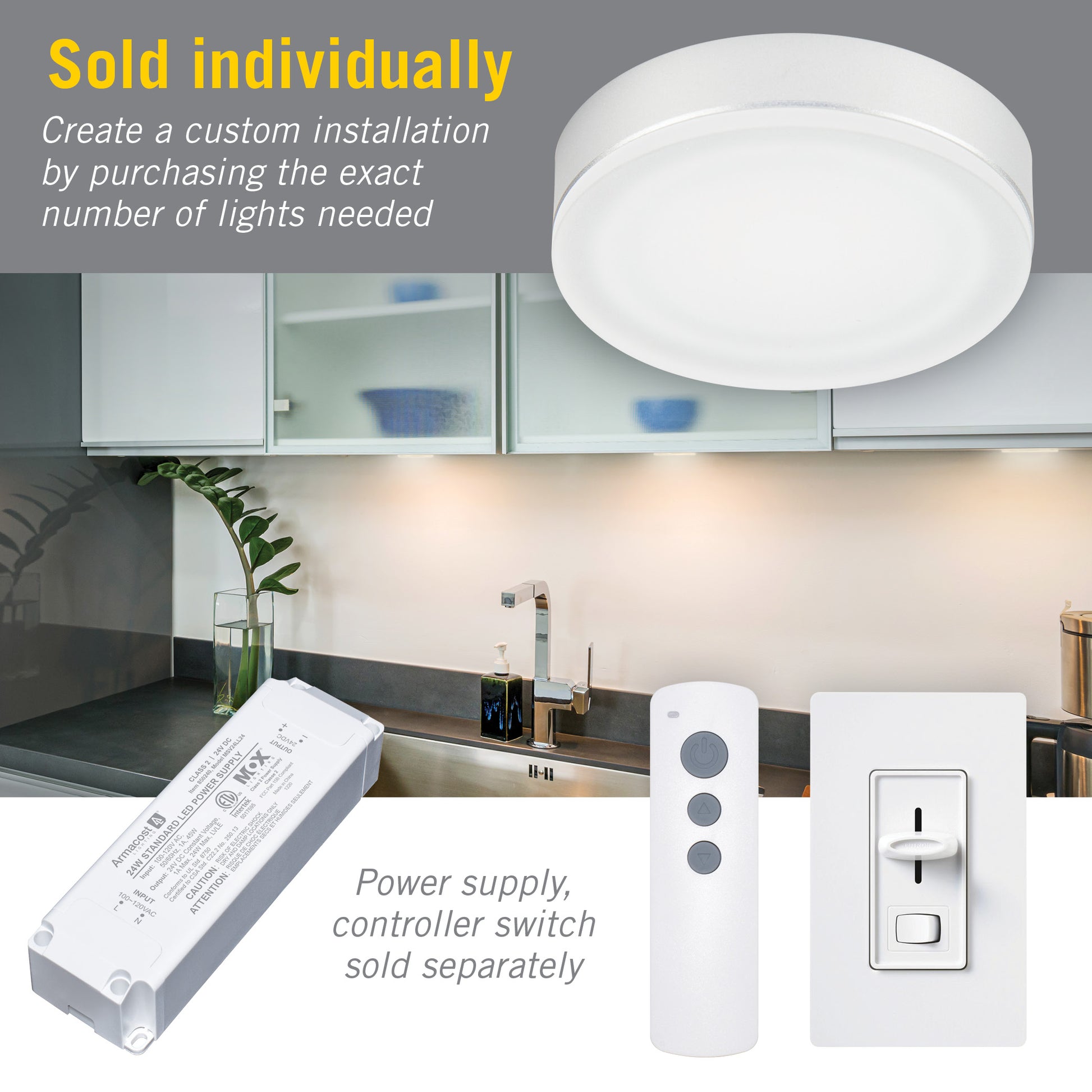

  • Sold individually, but can be easily installed as a set (12V LED driver required, sold separately)
INSTRUCTIONS

Product Description

Designed with a unique 360 degree edge illumination surface, the 12 Volt EdgeVue LED Puck Light from Armacost Lighting creates a soft glow from all angles. With surface and recess mounting options, the LED downlights are a versatile and distinctive low voltage under cabinet lighting choice. With a recess EdgeVue mount, the entire puck light disc is illuminated with no visible trim ring. The trim ring is visible with a surface EdgeVue mount, but the LED light beam is still unobstructed and illuminates from all angles.

Product Specifications

Item #213120
Specification
Beam Angle (Degree)
68
Certifications & Listings
ETL Listed
Color Rendering Index (CRI)
80
Color Temperature
2700K
Connection Type
Hardwire
Fixture Material
Aluminum
Hours Lifespan
40000
IP Rating
IP20
LED Light Color
Warm White
Mounting Method
Recessed Or Surface

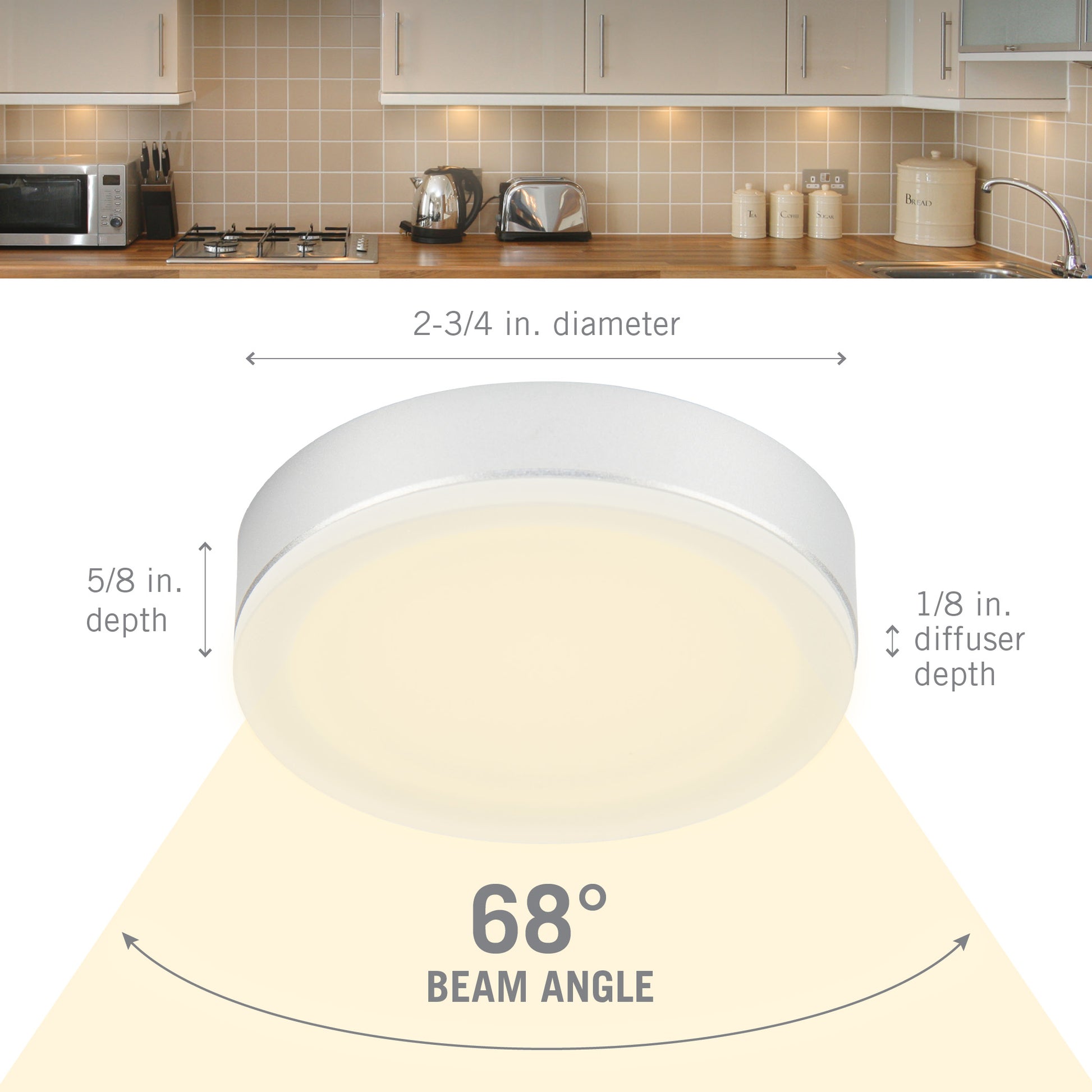

Puck Light Diameter
2.7 in
Total Lumens
200
Voltage
12V
Warranty
3 Year Limited
Watts
3
How to Wire Armacost Lighting LED Puck Lights

How to Install LED Puck Lights

Armacost Lighting puck lights come with wire leads for easy hardwire installation.  Learn about the most common wire configurations to connect under cabinet puck lights to LED power supplies.

Read Article
